How to Use Benchling Analysis

Introduction to Benchling Analysis

Benchling's Insights platform offers robust tools for data analysis, enabling users to create, manipulate, and visualize datasets derived from various sources within the Benchling ecosystem. Analyses are a feature of the Insights product that allows users to create tables from Benchling data for analysis in external analysis tools.

Create an Analysis

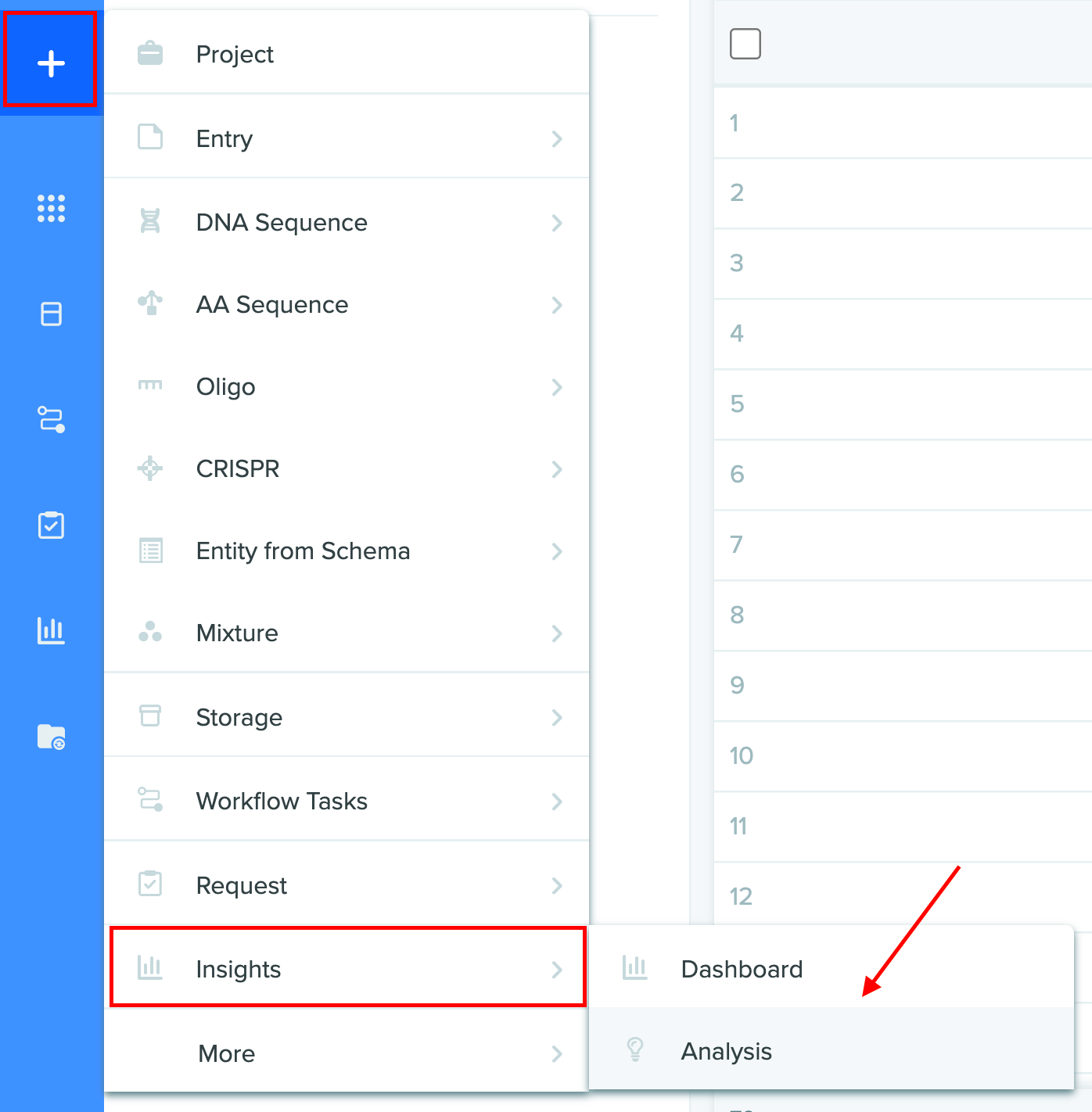

1. Navigate to the Global create icon on the sidebar; click on Insights and select Analysis
2. Enter a Name and Project for the analysis
   1. Note that any data in the analysis, including data pulled from other projects, will be available to all users with access to the selected project
3. Click Create

Create an Analysis Table

Analysis Tables are the top-unit level of table data in an Analysis, although an Analysis can contain multiple Analysis Tables. Unlike Insights dashboards, Analysis Tables can only be modified from within the Analysis, and do not live update with data from outside the Analysis. They provide a foundation to filter, transform, and prepare data for graphing, data analysis, and export.

To create an Analysis Table,

1. Navigate to the Analysis in which you would like to create your table

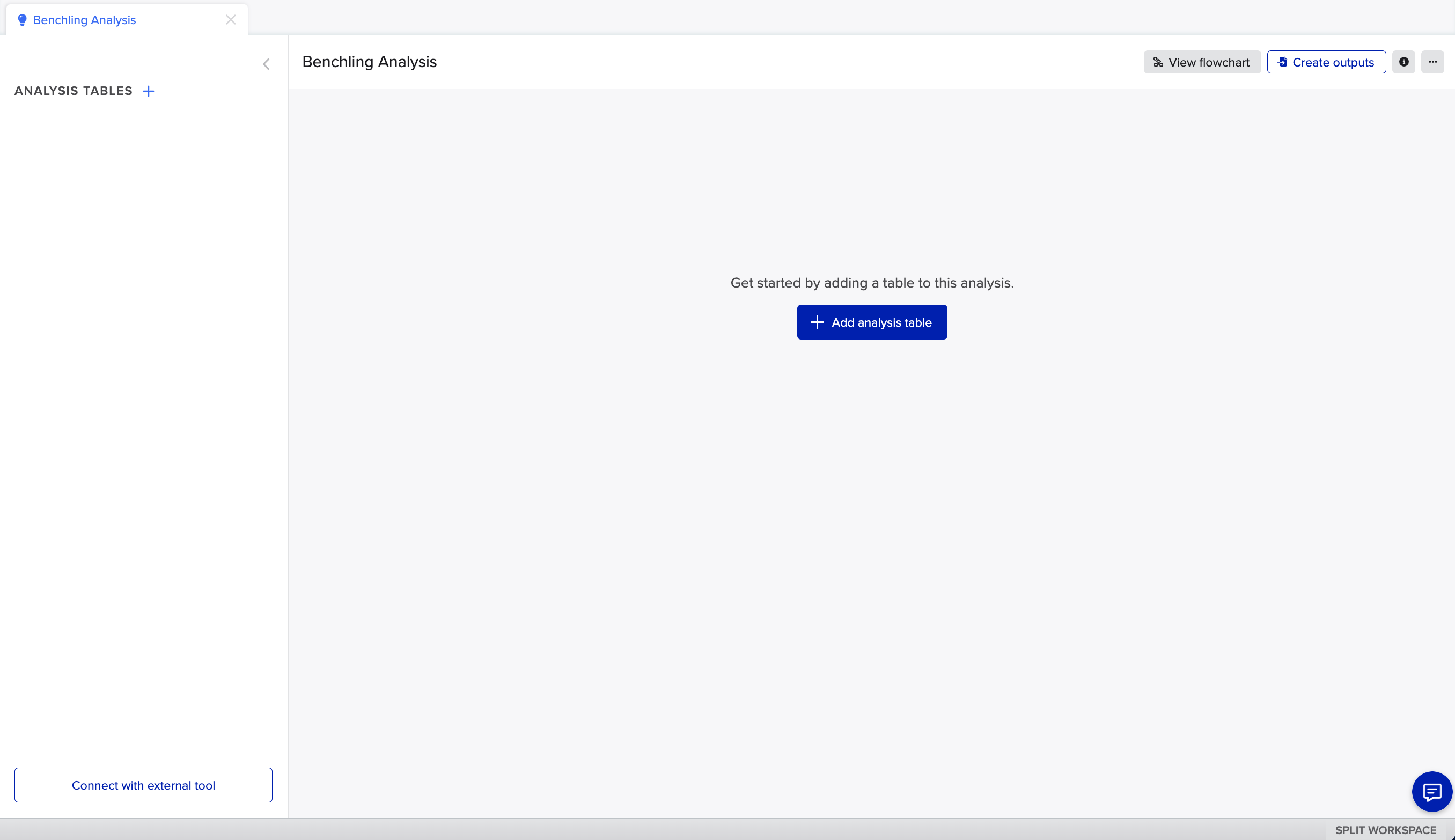

2. Click the + button next to Analysis Tables. For a new Analysis, you can also select the blue “Add analysis table” button in the Benchling workspace

From the resulting menu, there are multiple ways to create analysis tables from data within or outside of Benchling. The process for each method is described in the sections below.

A Note on Format

Analysis works best with long data rather than wide data. Long data is where a row only contains a single observation (e.g. a well plate). Additional columns contain data point(s) about that observation. In other environments and applications,  wide data  is often used. This is where you might have many columns of data with datapoints in them, such as "Cell Line 1" and "Cell Line 2" being separate columns, each with "Concentration" values inside them. See below for examples. Wide data can be converted to long data by using the Unpivot transform.

Long format data is necessary to leverage various transforms in Analysis like aggregations, binning, grouping, etc.

Example Long Data

Example Wide Data

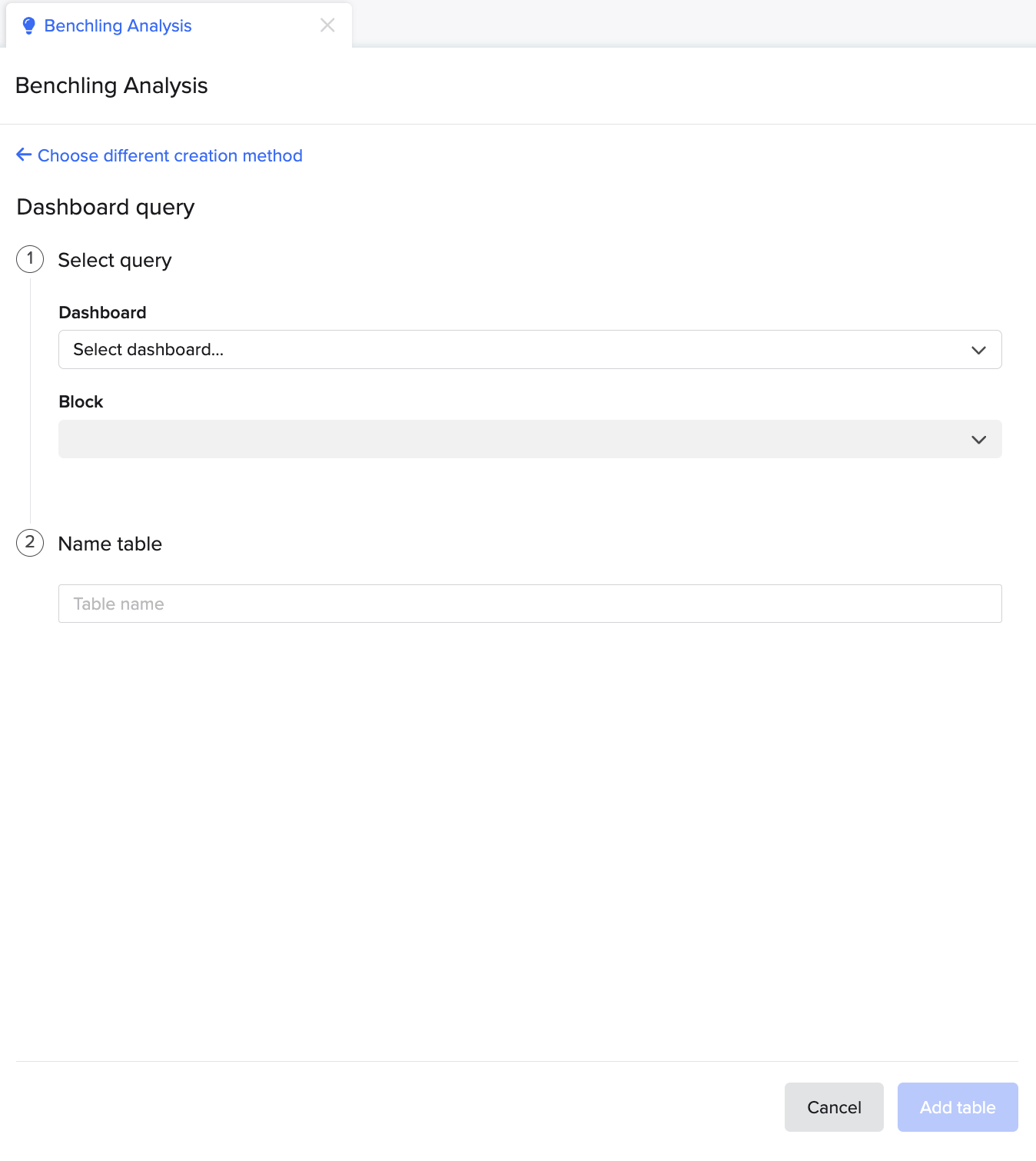

Create an Analysis Table from an Insights query

Use an existing Insights SQL query to create an Analysis Table. This option is only available to Benchling users with Data Warehouse licenses. Note: These queries are currently limited to returning 50,000 rows.

1. Select ‘From dashboard query’
2. Select the dashboard and block you wish to import into your table; you may choose to rename the table at this time. The data table will preview on the right hand pane
3. Click Add table

Create an Analysis Table from a Registry schema

Use Registry and Result schema data to create an Analysis Table.

1. Select ‘From Registry schema’
2. Select a Registry schema to start from. This will pull all entities from the selected schema into the table. Apply filters to narrow down the entities that are pulled into the table
3. Select the columns to include in the table. Entity links on the schema can be expanded to allow linked schema data to be pulled into the table
4. Click Add Results to add Results that are recorded against entities in the selected Registry schema
   • If there is more than one field on the Result schema that could link to the Registry schema, a dropdown will appear to specify which field of the Result schema that you want to join on.
   • Selecting ‘Only include latest results’ will pull the latest result captured per entity into the table, whereas ‘Include all results’ will include all result data captured against the entity
5. Click Add table

Notes about Registry schema tables:

• Up to 50,000 rows of data can be created.
• This method of table creation queries Benchling’s core database, and therefore does not have any sync latency
• When multi-select fields or related results with >1 value are selected, the data is split across multiple rows. Linked data is joined via a “left join”. To re-aggregate data in downstream analyses, we recommend selecting the “id” column when needed.
• The created table is a snapshot of the data returned from the executed query at table creation. The data does not update over time.

Create an Analysis from Plate data

1. Select "From plate schema"
2. Select the schema for which you'd like to retrieve plate data.
3. Search for and select one or more plates you'd like to ingest by using their name identifiers.
4. Select the fields you'd like to retrieve from this data by navigating the list of available options.
5. Specify a name to be used for this new analysis table.
6. Click Add table

Create an Analysis Table from a CSV file

Upload data directly into the Analysis tool by creating a table from a CSV file. Note: This method is currently limited to ingesting files up to 150MB. (There is no limitation on number of rows or columns.)

1. Select ‘From CSV’
2. Under Upload CSV, select Choose a file or drag and drop your file. A pop-up window will appear to select a file for upload. The file must be in a CSV format.
3. When a file is uploaded, a preview will appear on the right side of the screen, and the editable “Name table” field will automatically populate with the file name.
4. You can change the name of the Analysis Table from the default file name
5. Click Add table

Create an Analysis Table by combining Analysis Tables

Join two Analysis Tables and/or Views to create a new Analysis Table.

1. Select ‘By combining tables’
2. Select your desired tables within the Analysis and choose the join type you wish to use:
   • Left Join: Join all rows from the left table, matching rows from the right
   • Inner Join: Join only matching rows from both tables
   • Right Join: Join all rows from the right table, matching rows on the left
   • Full Join: Join all rows from both tables
   • Append: Merge rows based on the index, without join keys
3. After selecting the desired join type, you will be prompted to choose the join keys that match columns between the tables
4. After selecting your chosen join keys, Benchling will preview the created table on the right side of the workspace. Rename your new table as desired and click ‘Add table’. The table will be added to your Analysis and can be manipulated or create views like any other Analysis Table
5. Click Add table

Once you have your table(s) created, you can create Analysis Views to chart and transform the data.

Analysis Views

An Analysis View is a copy of an Analysis Table that can be modified using filters, transformations, and charting. Analysis Views are nested under the Analysis Table that they were created from, and if a filter is applied at the Analysis Table level, the filter will be applied to all Analysis Views for that Analysis Table.

Data modifications that are applied to an Analysis View will not propagate up to the parent Analysis Table or to other Analysis Views. However, they will propagate to an Analysis Table that is created through the “By combining tables” option using the Analysis View or when an Analysis View is promoted to an Analysis Table. Please see the section called Promoting Analysis Views for additional information.

Creating an Analysis View

Create a new Analysis View from an Analysis Table to apply transformations or visualization to the data

1. Navigate to the Analysis screen
2. Under the Analysis Table, select New view

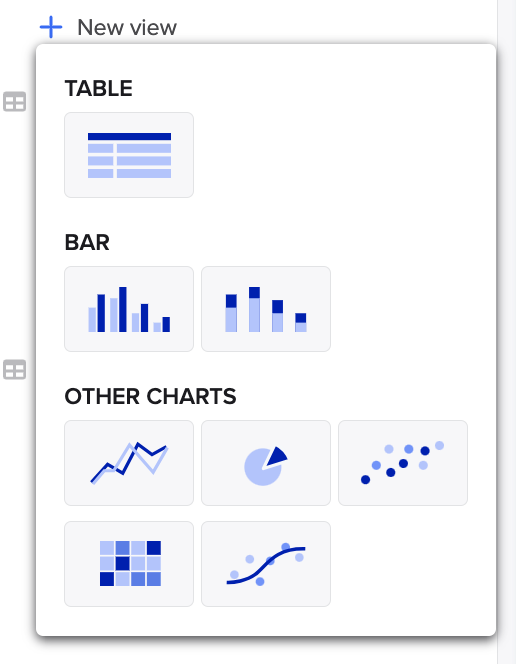

3. Select the type of View that you want to create of the Analysis Table
4. A new View will be created in the format selected for further customization
5. To navigate out of the Analysis View, click Return to Analysis

Renaming an Analysis View

1. Select the Analysis View that you want to edit
2. Click into the text box in the top left corner of the View and click to edit the name of the View
3. The new Analysis View name will automatically be saved
   1. In a View that has already been created, you may have to click the edit icon to open the text box to edit, then click the check mark to save the new name

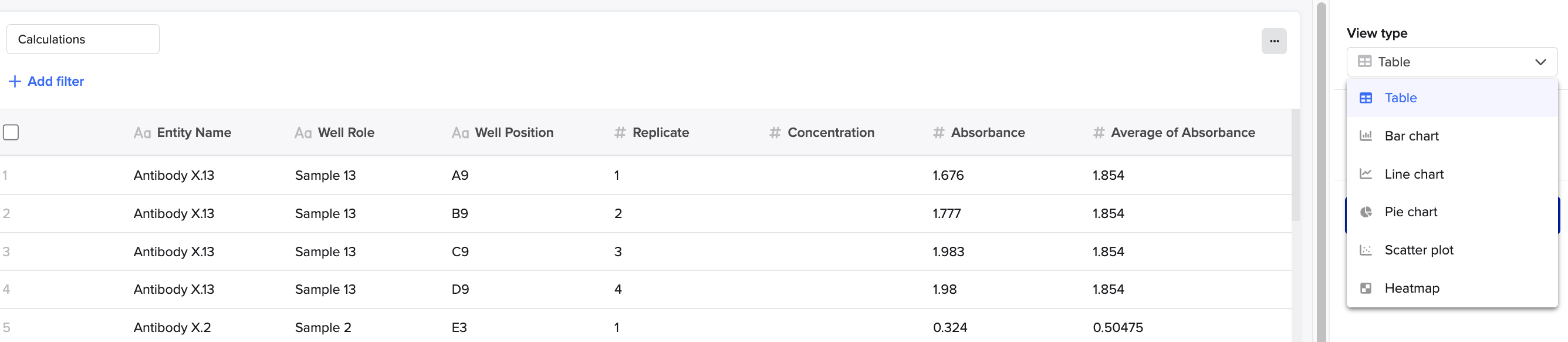

Changing an Analysis View type

If an Analysis View already exists, you can still change the View Type in the Analysis settings panel at any time. Analysis View Types include (but are not limited to) tables, bar charts, pie charts, heatmaps, and scatter plots.

1. Navigate to the Analysis
2. Select the View that you want to edit
3. Select the edit icon in the top right corner of the displayed View
4. Under “View Type” in the setting panel on the right, select the type of view you want to change to from the dropdown menu
5. The Analysis View will automatically save

Promoting an Analysis View to an Analysis Table

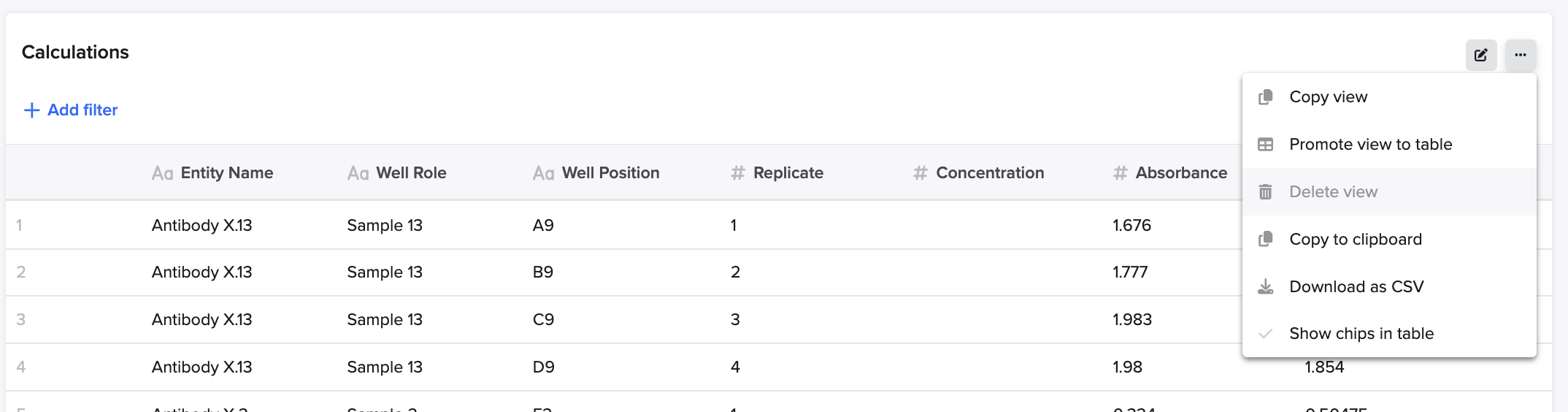

An Analysis View can be promoted to an Analysis Table. The Analysis Table will continue to reflect changes made to the Analysis View from which it was promoted. This is another way that you can create a new Analysis table.

1. Select the View that you want to promote
2. Click the ... icon in the top right corner of the View
3. Choose “Promote view to table”

Promoting graphical View types (such as heatmaps or scatter plot types) promotes the underlying data table from which the graph was generated. This data table is visible in the editing mode of the Analysis view.

Data flagging

Data flagging in Benchling Analysis allows you to manually annotate and comment on rows of data in table views. Each flag is accompanied with a comment and can be filtered as needed using normal filters in Analysis. Flagging is intended to be a manual process that is unique to a particular dataset and analysis at a specific point in time.  Conceptually, you should flag rows that are anomalous or need special treatment-- especially when the reason for special treatment is not something captured in the data itself. If it is captured in the data, regular filtering can be used for this purpose this is because filtering can be automated, data flagging can't. Every step of adding or removing flags (or deleting the associated steps) will be saved to the audit log so that all flag-related changes are recorded and can be reconstructed.

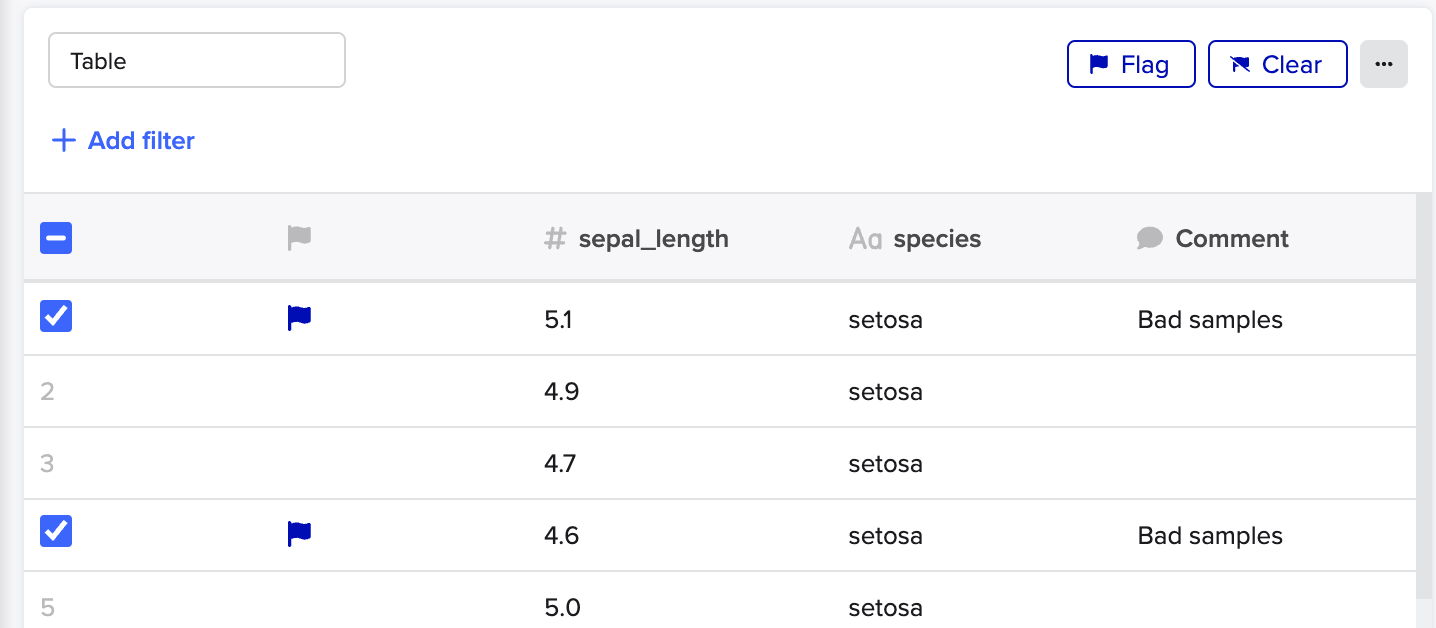

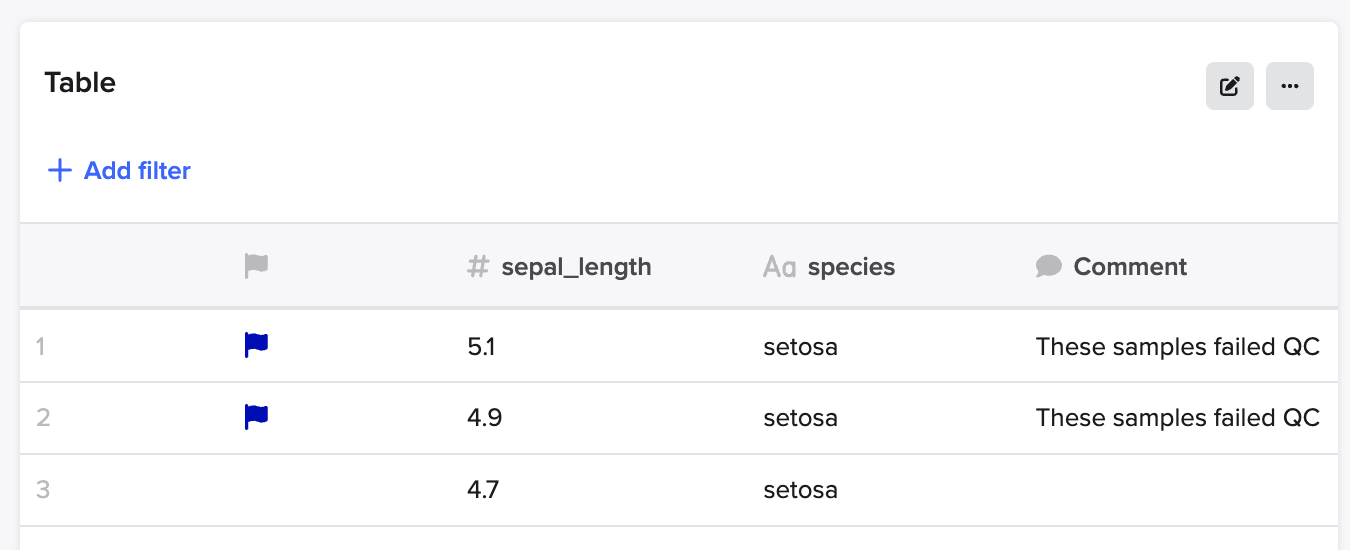

Adding flags to rows

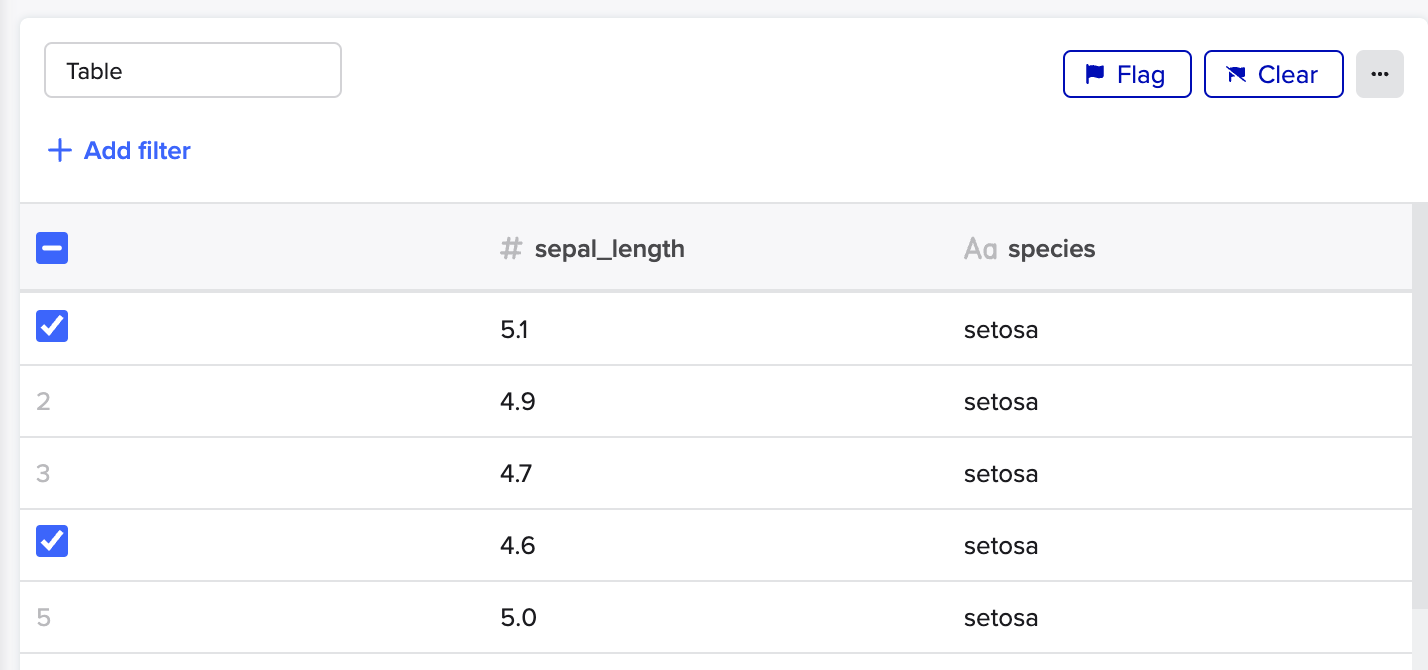

To flag rows, click the checkbox that appears when you move your cursor to the row number at the left edge of the row. Select as many rows as needed.

Click the Flag button that has appeared above the table. Enter a comment that explains why these rows are being flagged. Comments are required. The comment you enter will be applied to all the rows you selected. Once you submit, a flag column will be visible with the rows that were flagged along with a new Comment column.

Note: Once you flag rows, all the preceding steps in an Analysis before the table in which rows are flagged will be locked. This means they will not be editable.

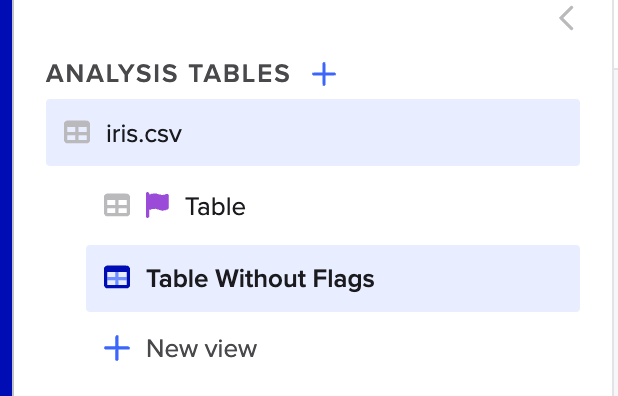

Filter out (or for) flagged rows

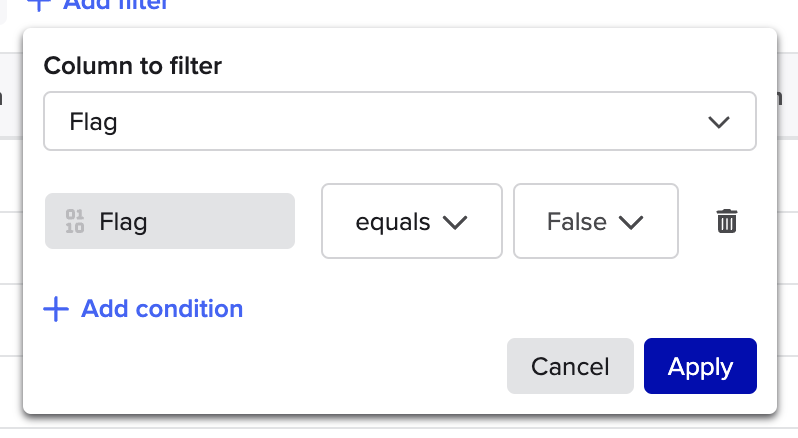

Once rows are flagged, it is easy to either filter those rows out or filter unflagged rows out by Adding a filter on the Flag column and selecting the appropriate logic for your needs. For example, you can filter out flagged rows by setting the filter to "Flag equals false".

Remove flags

To remove flags, simply select the rows you wish to remove the flags from and click the Clear button instead. Clearing flags also requires a comment.

An alternative method to delete flags is to delete this step in the Filters and Transformations sidebar. As with any other transformation or filter in Analysis, changing flagged rows (adding or removing flags) will cause all downstream Analysis steps and transformations to rerun.

Once flags are added to a table in an analysis, there are several caveats to keep in mind.

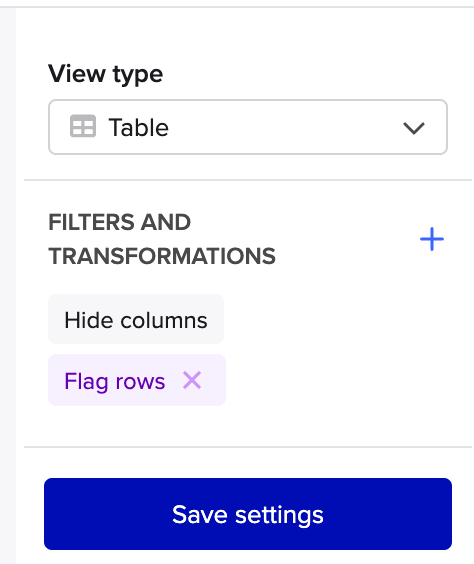

• Data Flagging steps: Each flagging operation creates a "Flag rows" step in the list of Filters and Transformations.

• Multiple flags: You can add multiple flags to the same row. All of the added flags will be visible in the audit log. However, in the Analysis, only a single flag will be displayed in the flag column whether one or more flags are added, and only the most recent comment will be displayed in the comment column.
• Locking: All views and tables that precede a table with flagged rows will be locked. That is because changing prior transformations and filters might change downstream data, which may invalidate the meaning or validity of the flags. Therefore, to be safe, all preceding steps before the view with flagged rows are locked. The lock is lifted if the flags are removed. To make it easier to find which view contains flags that lock part of an analysis, view with flagged rows will have a Flag icon next to them.

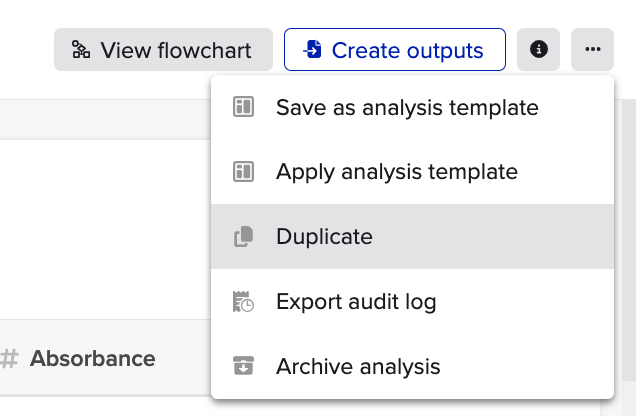

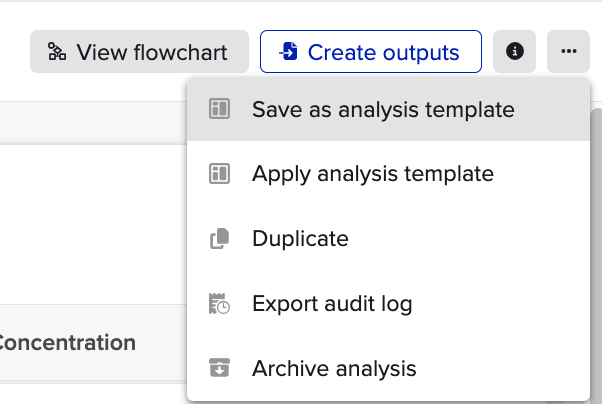

• Duplicating and Templates: Because flags are specific to a specific dataset and analysis at a specific time, we do not recommend duplicating analyses with flags. If an analysis with flags is duplicated, the flags will be copied over exactly as well. The creation of templates from analyses with flagged rows is not allowed.
• JOINs and UNIONs: If either a JOIN or UNION step occurs anywhere after a data flagging step, the flags and comments will be converted to simple booleans and text, respectively. A second flag step created thereafter will create new flag and comment columns.

Using transformations and filters in Analysis

Analysis Views can be manipulated through the application of transformations and filters. Transformations can be used for many functions, including filtering and sorting columns and performing mathematical, statistical, and logical operations on your data.

Adding transformations to an Analysis View

Transformations are the primary means to manipulate the data tables loaded into an Analysis. They can be added to Analysis Views and can perform a number of powerful functions. To add a transformation:

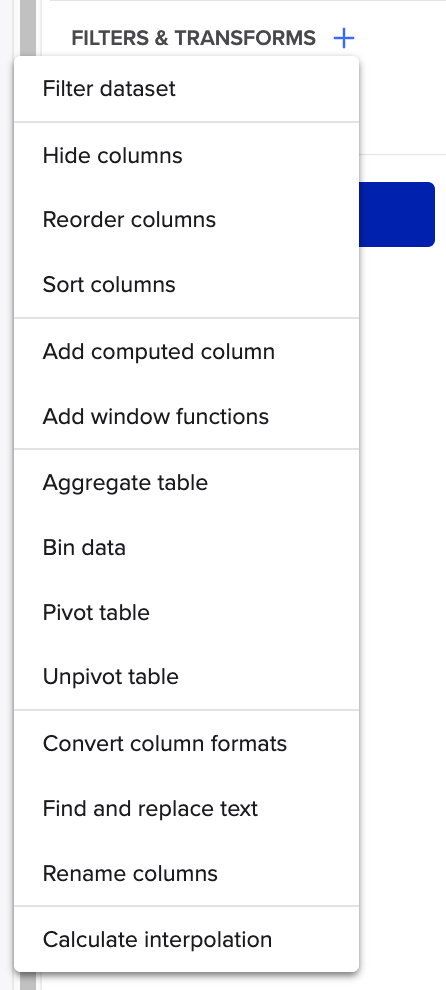

1. Click the + icon next to Filters & Transforms
2. Select the transformation that you wish to apply
3. Fill out the information in the transformation modal to appropriately transform your data, the click Submit

Standard transformations

Current standard transformation options include:

Add computed column - Create a column with values defined by a combination of mathematical, statistical, logical, string, or datetime functions

Add window function column(s) - Apply a function over a subset of data

Aggregate table - Apply a mathematical aggregation function over a set of input values

Bin data - Divide numerical columns into a defined number of bins

Convert column formats - Change the data type of column to another type

Find and replace text - Change a defined string into a new value. Accepts strings or regular expressions

Hide columns - Changes the visibility of a column to hidden

Pivot table - Creates a table of grouped values from individual values

Rename columns - Changes the column header

Reorder columns - Changes the ordering of columns in a table

Sort columns  - Sorts a column in ascending or descending order

Unpivot table - Flattens a table, converting aggregated columns into rows

If you have access to Advanced Analysis, you also have access to the transformations for Regression and Interpolation. Regressions and interpolations are powerful analysis tools that allow you to model data relationships and make predictions based on existing trends. Regressions help create mathematical models by fitting a curve to your data, enabling you to understand relationships and identify key parameters. Interpolations use these regression models to predict values for new data points, bridging gaps in your datasets. For more information about about the transformations, see this article.

The sections below cover how to create and configure regressions, interpret their results, and use interpolations to calculate new values seamlessly within Benchling.

Regressions

Note: Regressions are only available for those that have access to Advanced Analysis.

Creating a regression

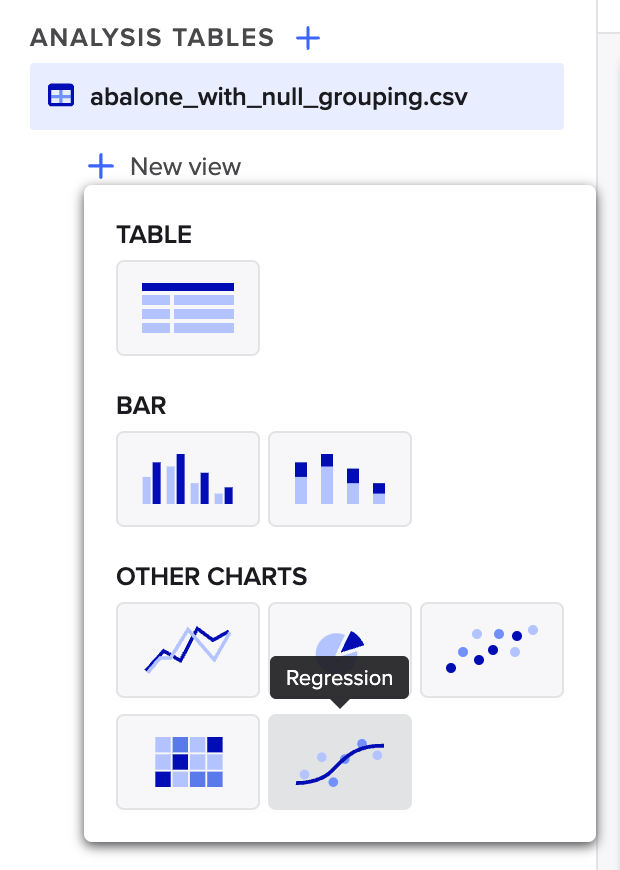

1. Select Regression when adding a new view under an existing table containing the X and Y variables for the regression
2. A new regression will be created, and the editing view will open automatically
3. After creating the regression, you can modify the data from the existing table by filtering or transforming it within the regression view

Configuring a regression

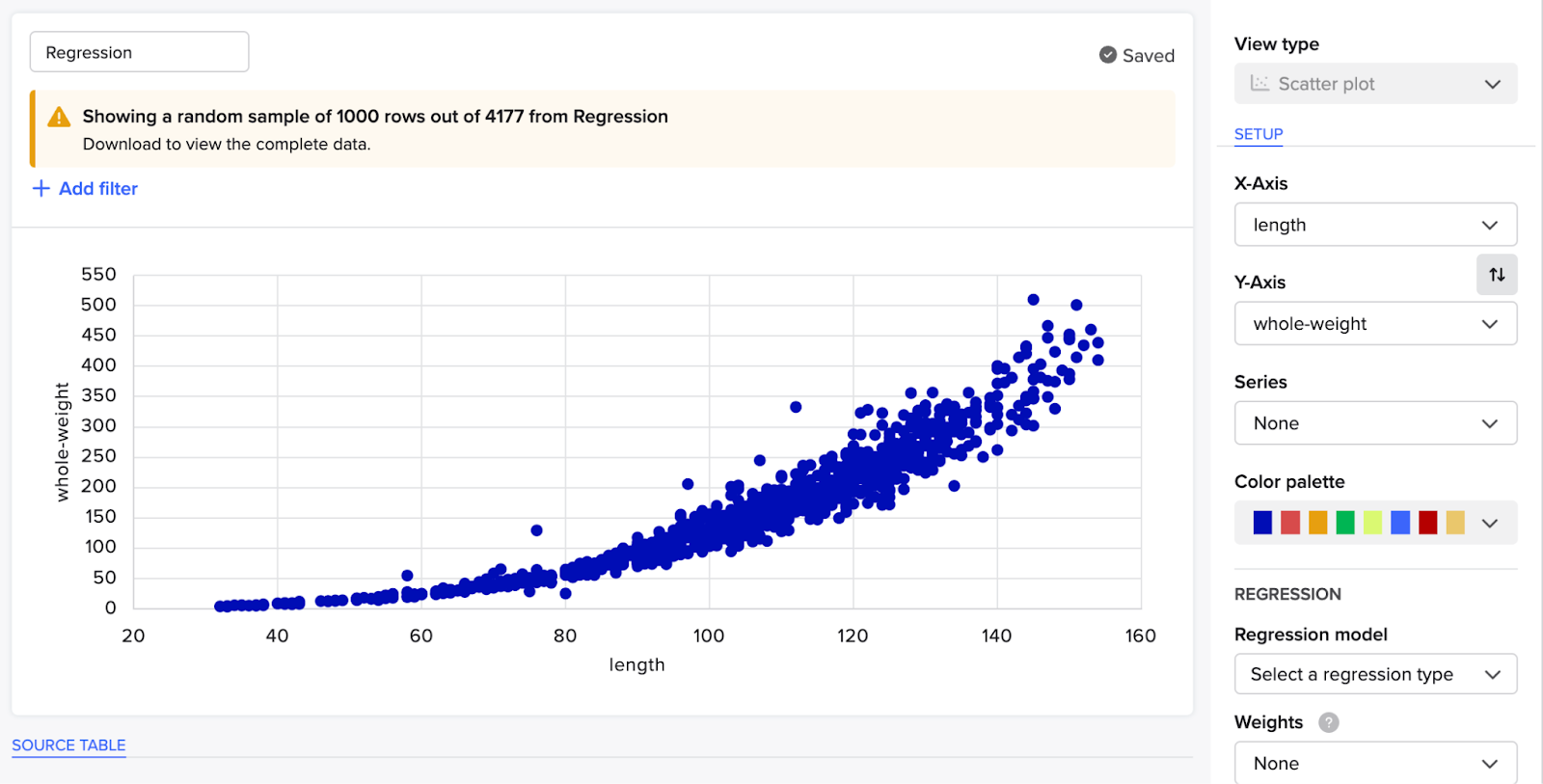

The editing sidebar allows you to configure the scatter plot and edit the regression itself:

1. Choose appropriate columns for the X and Y axes of the plot
2. Use the dropdown to select the regression model from one of the following

   • Linear
   • Quadratic
   • 4PL
3. Configure any optional configurations, such as:
   • Weights - Set weights for data points using the "Weights" dropdown. The default is equal weighting for all points. A link to more information is available in the dropdown popover.
   • 4PL constraints- For 4PL regressions, constraints can be set. The default setting is algorithmically determined constraints

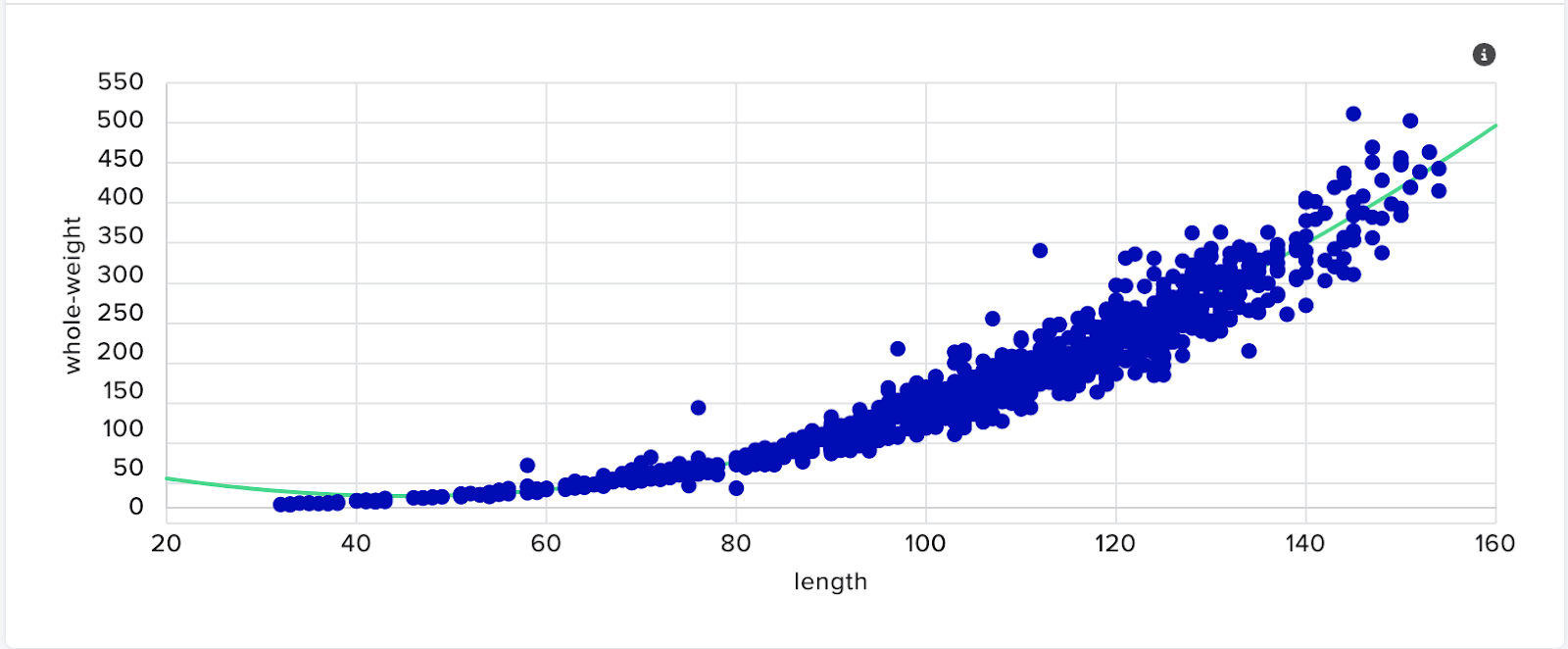

4. Click the Apply button to generate the regression and the regression line will be added to the chart automatically

Editing a Regression

1. Click Edit to modify the model or weights
2. Make your changes and click Apply again to update the regression

Regression Tables

Below the chart, the following tables are available:

• Source Table: Contains the data frame used for modeling.

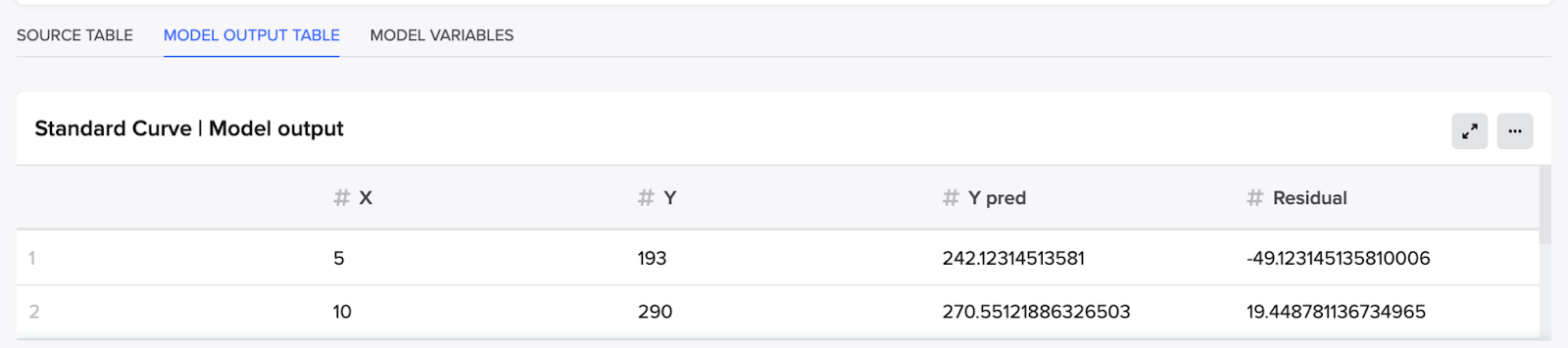

• Model Output Table: Includes the data used for modeling, predictions, and residual calculations.
• Model Variables Table: Displays parameters resulting from the regression, including:
  • For linear regression: slope and y-intercept.
  • For 4PL regression: Min, Max, Hill Slope, and Inflection Point.
  • Confidence intervals for the parameters are also included.

Interpolations

Note: Interpolations are only available for those that have access to Advanced Analysis.

Adding an Interpolation

1. In the editing sidebar of a view other than the one in which the regression was originally created, scroll to the bottom and click the + next to Transformations
   • Note: Ensure you are working in a view separate from the one where the regression was originally created
2. Select Calculate interpolation from the menu

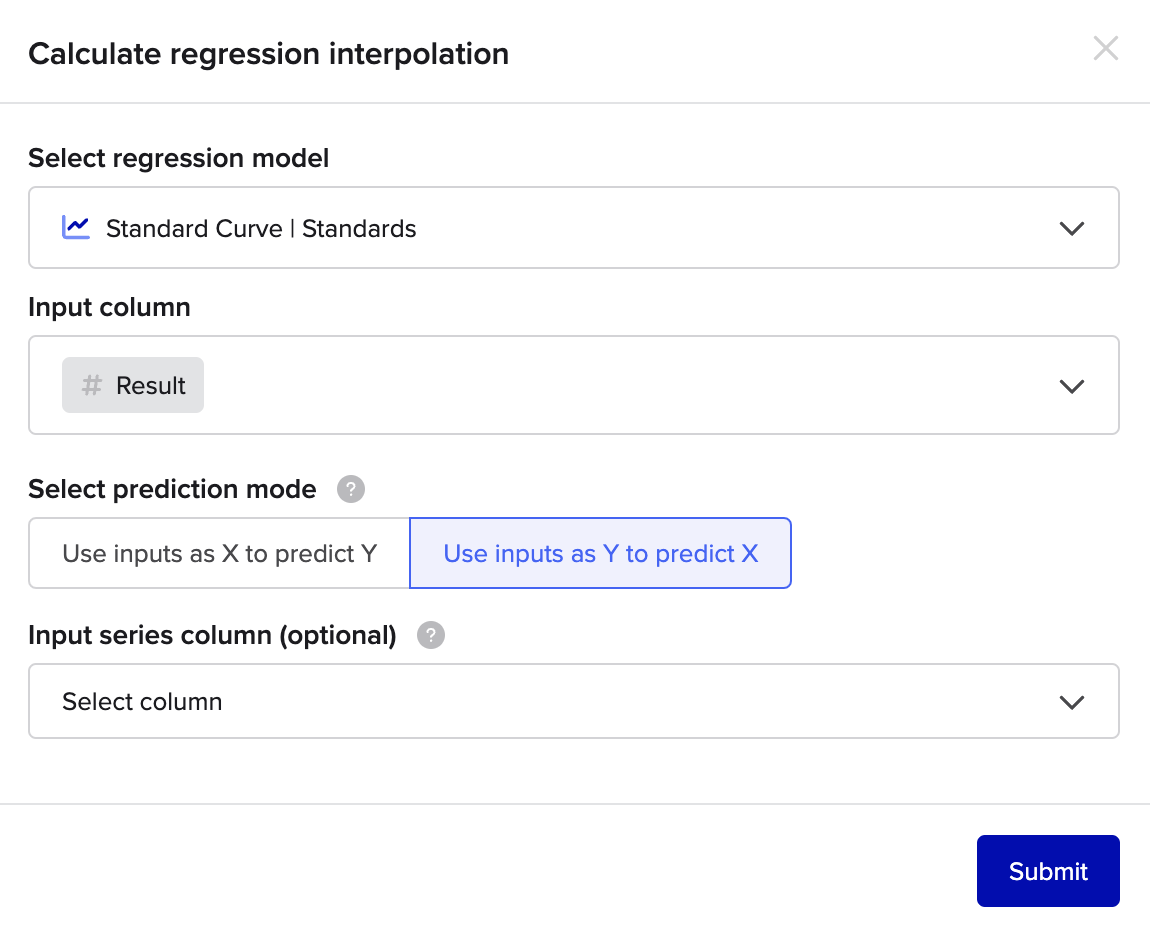

3. In the modal:
   • Choose the regression model to use
   • Select the input column from the view containing unknown values
   • Choose whether the input values should serve as X to predict Y or the reverse
   • Optionally, select a column to group interpolations by a Series variable
4. Click Submit

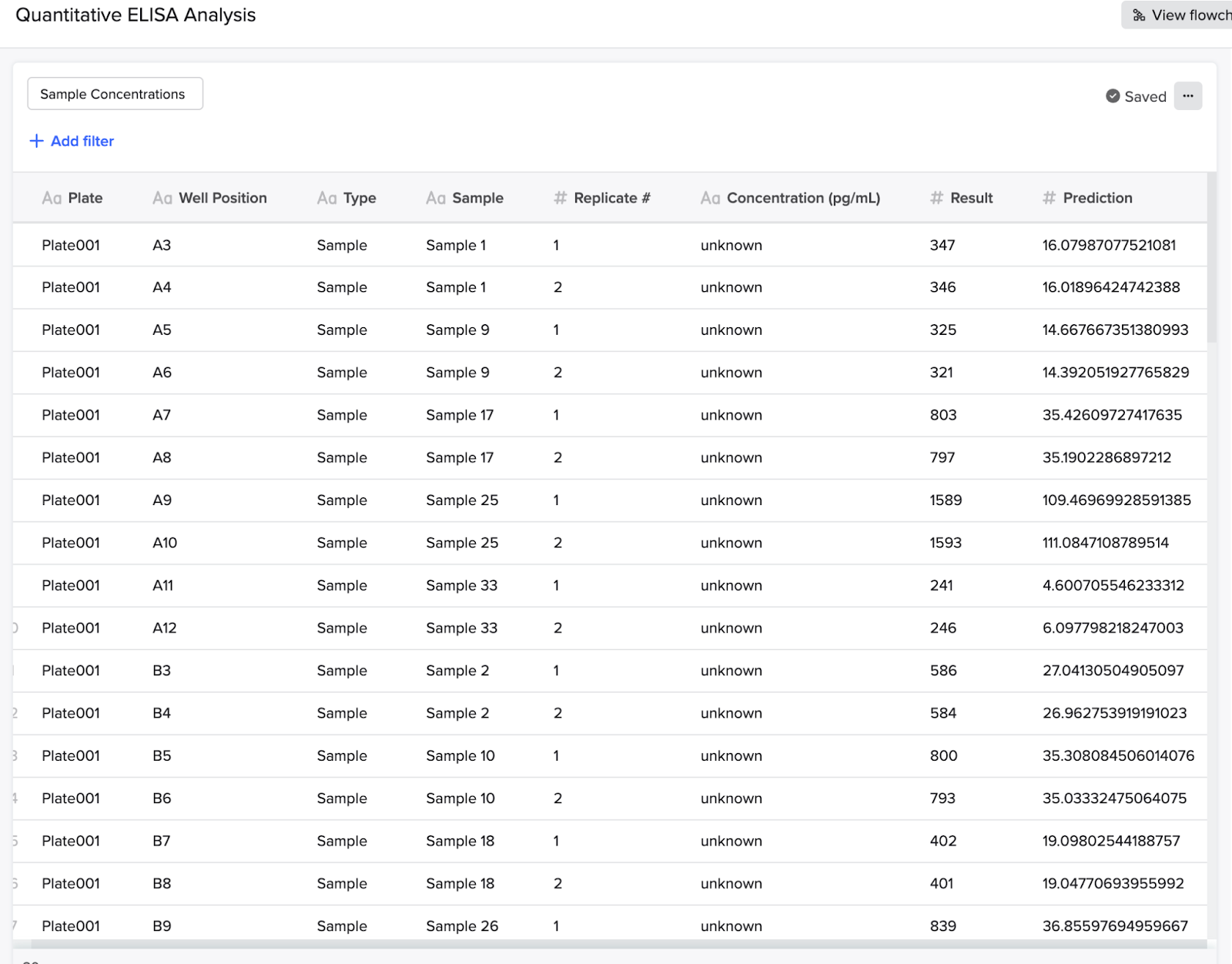

After the interpolation is complete, a new column named Prediction will appear on the rightmost side of the input table, containing the interpolated values.

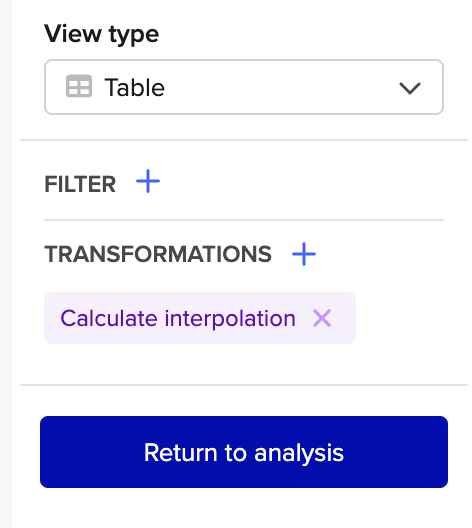

The interpolation step will be represented as a chip in the list of applied transformations and can be modified by clicking the chip.

Promote the view with the interpolation to a table to add interpolated values to charts or other tables as needed.

Analysis Filters

Users can add filters to Analysis Tables and Analysis Views. There is a 1:1 relationship between a filter and a column in an Analysis Table or Analysis View. That means a column can only have one filter associated with it, but there can be multiple conditions associated with that filter. An Analysis View will inherit any filters applied to its parent Table, and can have additional filters applied at the View level.

If you would like to apply certain filters to multiple columns, you will need to apply separate filters to each column. Filters are applied to the Analysis Table or Analysis View in the order that they are listed. To confirm the order in which filters and transforms are applied to your Analysis Tables and Views, please click the ‘View flowchart’ button in the top right corner of your Analysis.

Filter Conditions

Filter conditions define the criteria used in a filter to determine which data is displayed or hidden. Multiple filter conditions can be applied to a filter.

If you would like to apply certain filter conditions to multiple columns, you will need to apply separate filters with those conditions to each column.

The Analysis tool supports the following conditions for filters:

• Text Column “TC” filter options
  • TC is null
  • TC is not null
  • TC equals text
  • TC does not equal text
  • TC contains text
  • TC does not contain text
  • TC starts with text
  • TC does not start with text
  • TC ends with text
  • TC does not end with text

• Number Column “NC” filter options:
  • NC is null
  • NC is not null
  • NC equals #
  • NC does not equal #
  • NC is less than #
  • NC is more than #
  • NC is at most #
  • NC is at least #

Note:  if you created an Analysis Table via csv upload, your number columns might appear as text columns. Create an Analysis View, then use the “Convert column formats” transformation to convert the column from text to an integer or decimal format. Then you can apply the number-based filter options!

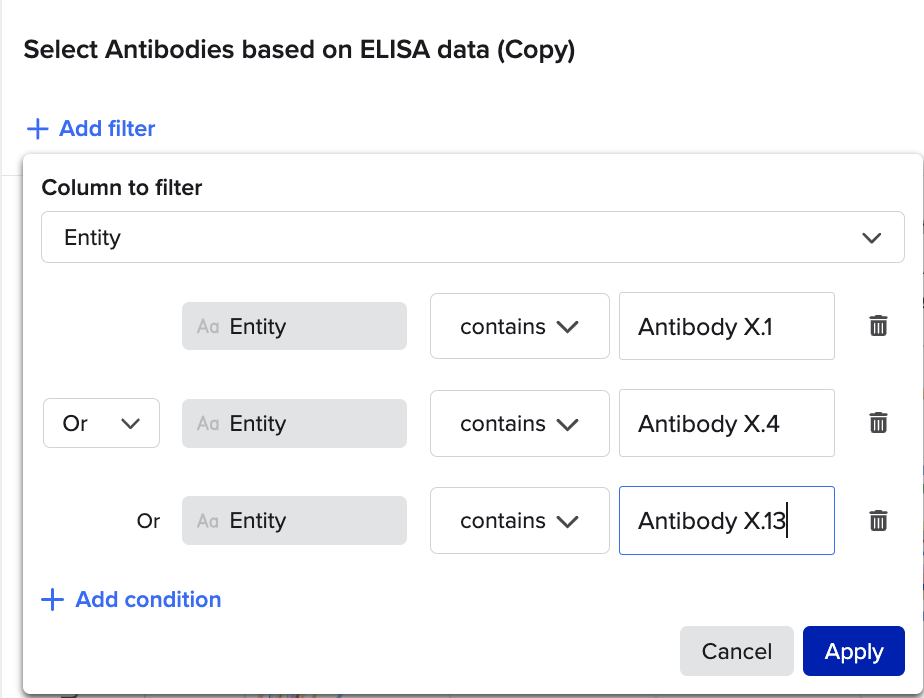

Adding Filters and Filter Conditions

Filters are applied to an Analysis Table or Analysis View in the order they are listed. To add a filter or filter conditions to an Analysis Table:

1. Under the table title, click the blue + Add filter text
2. Use the dropdown to select the column to which you would like to apply the filter and select your filter conditions.
   • Note: each filter can only designate a single column, you can use And/Or logic to set multiple conditions for that filter for that column, which will be the only filter you can apply to that view for that column
3. To add additional filter conditions to the filter, click the blue + Add conditions button in the filter configuration modal and configure the filter condition
4. Click the Apply button

Editing a filter or filter conditions

1. Click into the desired filter listed under the Analysis Table title
2. Modify the filter and filter conditions as needed
3. Click the Apply button to save changes

Removing a filter or filter conditions

1. To remove an entire filter, click the x button listed at the end of the filter
2. To remove one or more conditions of the filter, click into the filter and click the trash can icon next to the filter condition(s) you wish to remove
3. Click Apply

Capturing data from a completed Analysis

There are several ways that you can capture data from a completed Analysis. The methods are listed in the section below.

Copying and downloading Analysis View data

Data can be copied or exported as a .csv from either an Analysis View or Analysis Table.

Instructions for Analysis Views:

1. Select the Analysis View that you want to copy or download
2. Click the ... button in the top right corner of the table to show additional options
3. Select “Copy to clipboard” to copy up to the first 1,000 rows
4. Select “Download as CSV” to download a CSV file of the Analysis View

Creating Outputs from an Analysis table

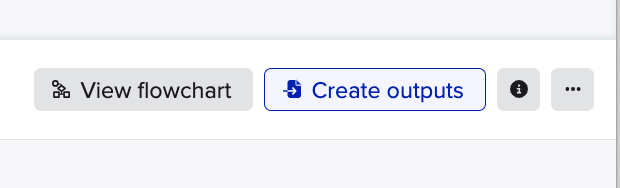

There are multiple ways to create an output from an Analysis table. Each of these start by clicking the Create outputs button on the Analysis.

Saving analysis tables to Results schemas

Since Results schemas are predefined with a certain set of columns, it could be useful to save an analysis table into a Results schema so the data can be queried together with other data in the schema. To do this from a Benchling Analysis Table, follow the following steps:

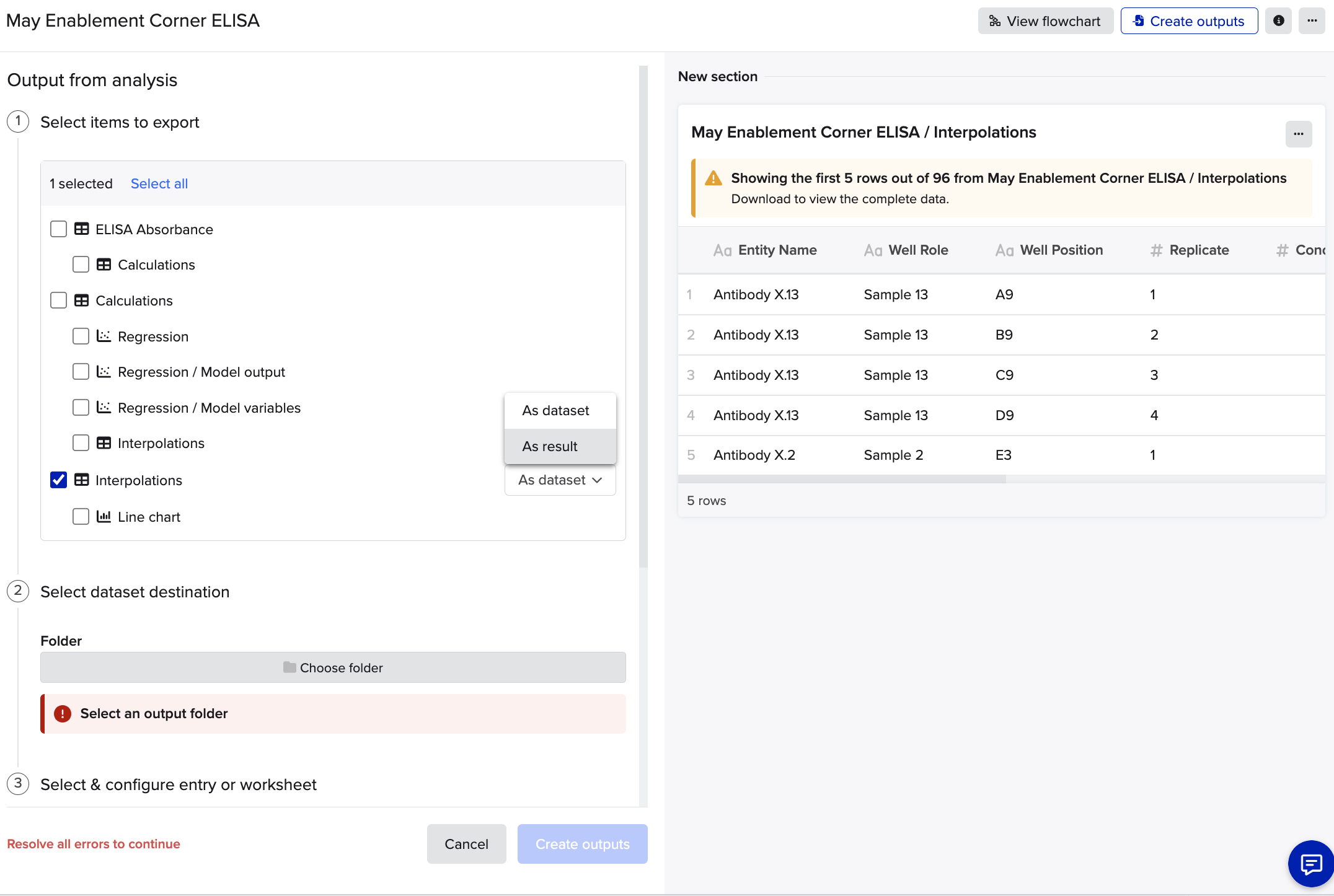

1. From the Outputs menu, use the checkboxes at the left to select which tables or charts you'd like to save
2. Use the dropdown next to the selected tables to select the As result option
3. In the modal that opens up, choose which Results schema you're saving the data to
4. Map the columns of the table to the fields of the Results schema using the drop-down options
5. Select an Entry or Worksheet to save it to, then click Create outputs

Embedding charts in Notebook entries

You can embed charts and tables directly in Notebook entries.

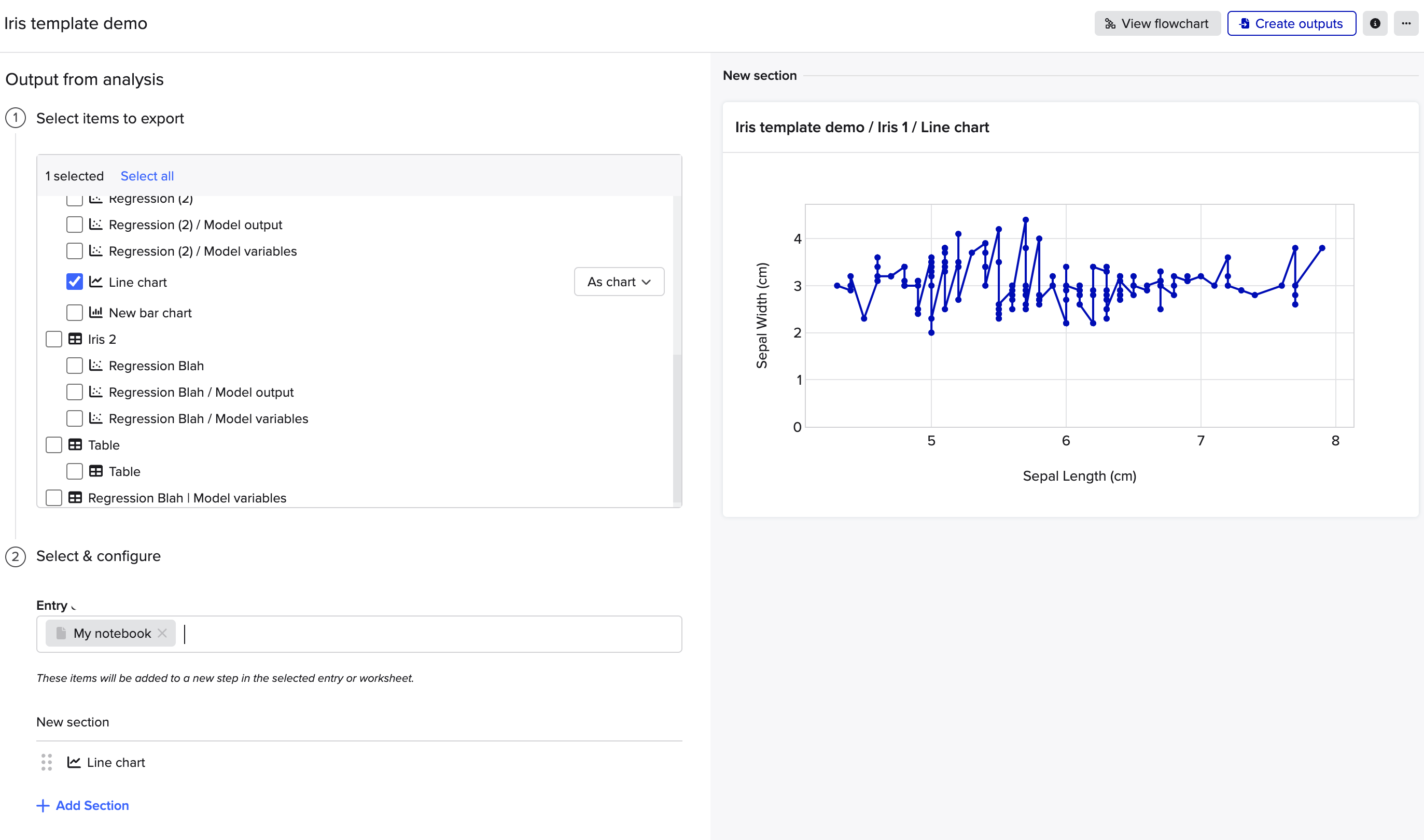

1. From the Outputs menu, use the checkboxes at the left to select the charts you'd like to embed
2. Use the dropdown next to the selected charts to select the As chart option
3. Select the notebook entry you wish to send the items to. Search for it by name in the Entry box
4. In order to embed these items, you'll need to create one or more new Sections in the entry
   • Create as many sections as you like with the + Add Section button. Click the six dot icon to drag and drop the items to be embedded into the sections you prefer
5. Click Create Outputs

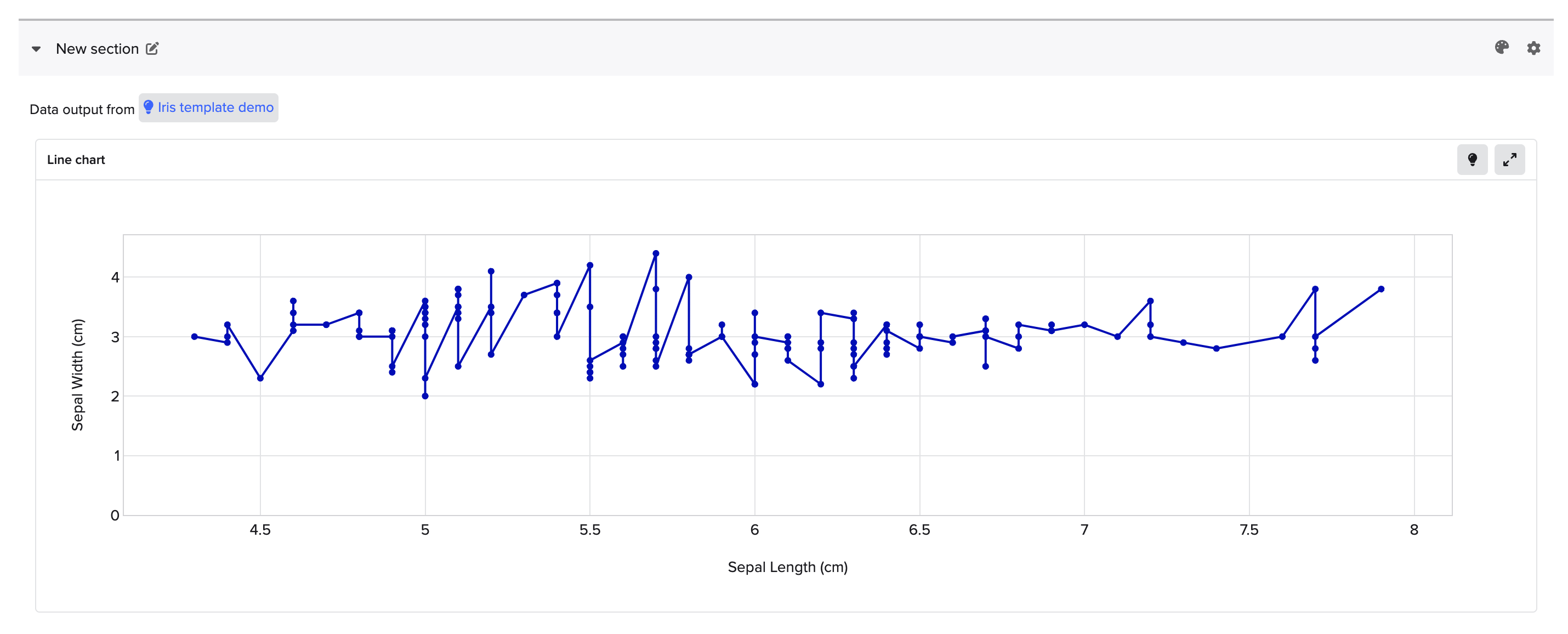

The charts and tables you selected are now in the notebook entry! Once this is done, the data sources and analysis steps that lead to the creation of the items you embedded will be locked, so that the view in the Analysis is the same as what is embedded in the Notebook.

If you do not want to directly embed the chart in the Notebook entry, you can @-mention an Analysis. Type "@" to bring up the search and begin typing the name of an analysis. Click on it to create the tag.

Once this is done, the link will appear in the Outputs section in the left sidebar of the associated analysis with a timestamp. This allows traceability of when Analyses are linked to notebook entries.

For customers with access to Bioprocess, you can also embed charts and outputs in Worksheets. The process is similar how you embed a chart into a Notebook, however for Worksheets the chart will be embedded into a new post-run Step.

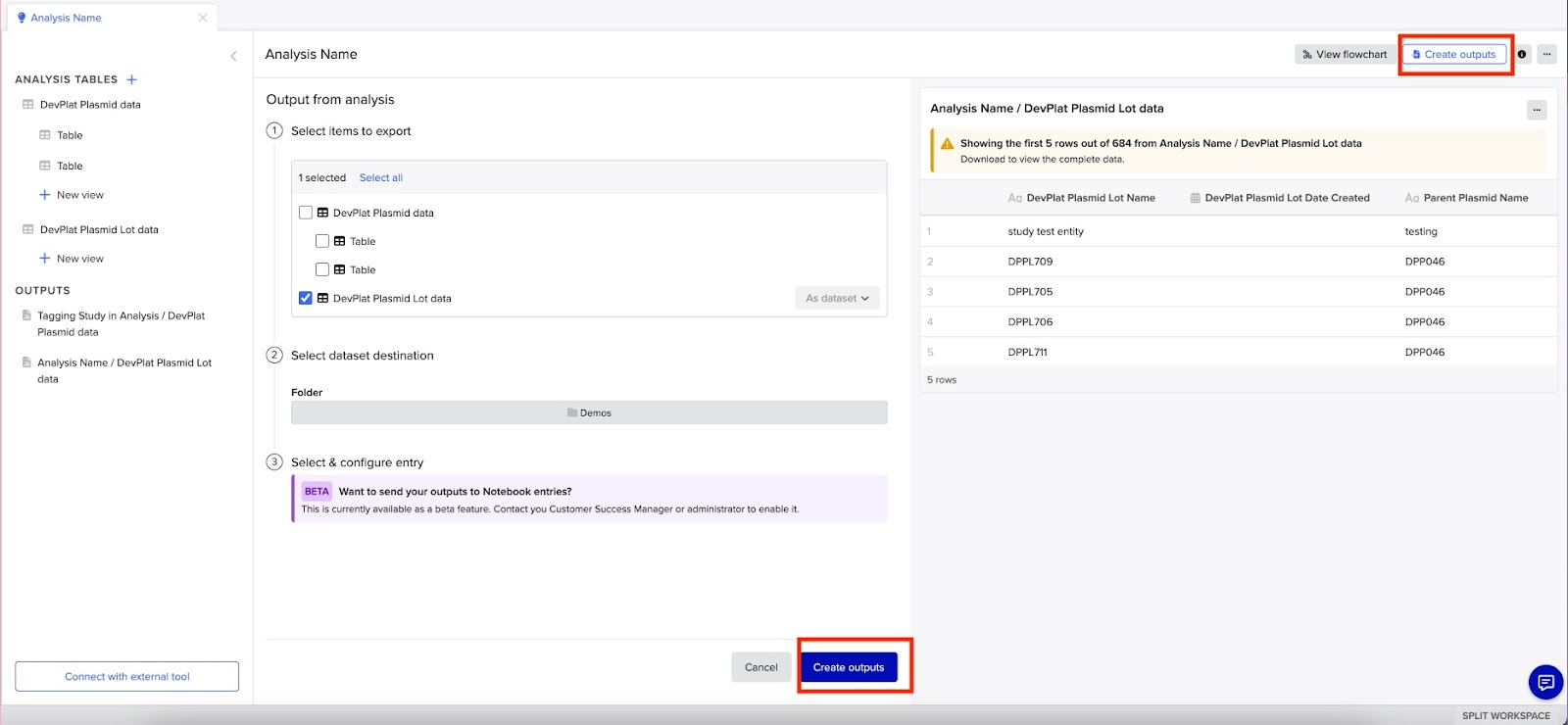

Creating Datasets

Datasets are tabular semi-structured data objects that are searchable and live in folders rather than within schemas. Learn more about Datasets in this article.

1. From the Outputs menu, use the checkboxes at the left to select the tables you'd like to make into Datasets
2. Use the dropdown next to the selected charts to select the As Dataset option
3. Select the notebook entry you wish to send the items to. Search for it by name in the Entry box
4. In order to embed these items, you'll need to create one or more new Sections in the entry
5. Click Create Outputs

Repeating an Analysis in Benchling Insights

In Benchling Insights, you can reuse data transformations and chart configurations on new sets of data to repeat analyses, saving time and ensuring consistency. This can be done through copying an existing analysis, replacing data sources, or applying saved templates. the sections below will walk you through each method, enabling you to efficiently rerun your analyses with updated data.

Copying and Replacing an Analysis

Duplicating an existing analysis is useful if you want to reuse the entire setup, including data transformations and visualizations, but with new or updated data sources or if you only have access to Standard Analysis. To copy an Analysis follow the steps below:

1. Open the analysis you want to copy
2. Click the ... menu at the top-right corner of the analysis
3. Select Duplicate
4. In the pop-up window, choose a new location and name for the copied analysis
5. The new analysis will be named “Copy of [Original Analysis Name]” and will be identical to the original, but independent of it




6. Once you've duplicated the Analysis, if you'd like to replace the original data tables with new data open the copied Analysis and go to the table that you want to replace

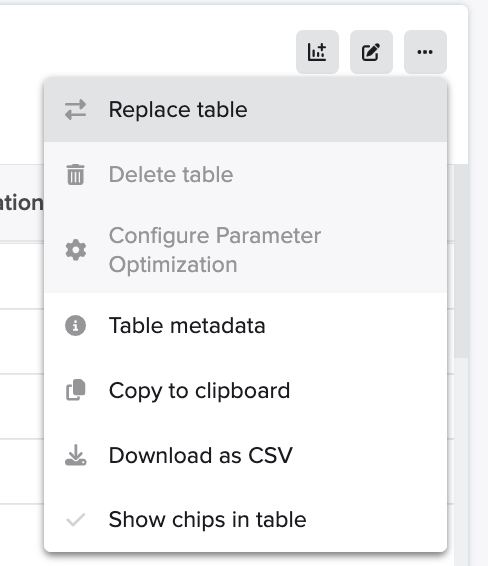

7. Click the ... menu next to the analysis table
8. Select Replace Table
9. Choose the method to bring in the new data (e.g., CSV upload, Registry, Notebook entry, or other sources)
10. The new data will be used in place of the previous table, and all associated transformations will be automatically rerun on the new data

Analysis Templates

For more standardized workflows, saving an analysis as a template allows you to apply the same transformations and visualizations to different data repeatedly.

Note: Analysis templates are only available for those that have access to Advanced Analysis.

To save an Analysis as a template, follow the steps below:

1. Configure your analysis with the necessary transformations and visualizations
2. Click the ... menu at the top-right corner of the analysis
3. Select Save as Analysis Template




4. Name your template and use the dropdown to save it to a Template Collection
5. For each Analysis Table, choose whether it’s variable (for new data each time) or static (using the original data)
   • Variable: Allows you to select new data each time the template is applied, ideal for scenarios where data changes frequently.
   • Static: Uses the original data tables from the template, which is useful for consistent data structures like plate maps or acceptance criteria limits.
6. Use the checkboxes to select which tables to export
7. Click the Create button
8. To apply an Analysis Template, open a new Analysis and use the + button to bring in all the tables you need

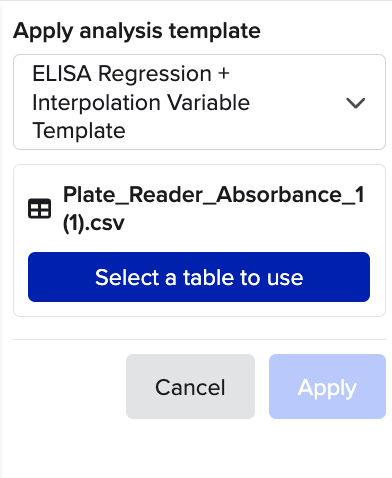

9. Once you have all your tables populated, click on the ... menu and select Apply Analysis Template




10. Use the dropdown to select the saved template from your Template Collection
11. Map your data to the template and click Save
    • If you apply an Analysis Template to the automatically generated Bioprocess data tables for a given Recipe Template, the tables will be predictably structured with the same table types and column names every time.
    • If you apply an Analysis Template to different data tables, you'll need to map the new data to the template's inputs. The data doesn't have to match exactly, but column mapping is required. If necessary columns are missing, the template won't run.
12. Once you've finished mapping, click the Apply button to run the saved transformations and views on the new data

Once an analysis template is created, it can no longer be changed. So you can be sure that any analysis that used that template followed an identical set of steps.

• Note: if you apply an Analysis Template to the automatically generated Bioprocess data tables for a given Recipe Template, the tables will be predictably structured with the same table types and column names every time.
• If you apply an Analysis Template to different data tables, you'll need to map the new data to the template's inputs. The data doesn't have to match exactly, but column mapping is required. If necessary columns are missing, the template won't run.



  Permissions for Creating Advanced Analysis Templates

  Advanced Analysis templates follow the same permission structure as Notebook entry templates. Permissions are managed through template collections, which control who can create and access templates across Benchling.

  Who Can Create AA Templates?

  Users who have permission to create Notebook entry templates within a template collection also have permission to create Advanced Analysis templates in that same collection.

  Note: There is no separate permission specifically for Advanced Analysis template creation.
