Fragment and Construct table tools

Change screen view

Enter split screen

In the top right of the table, “split screen” will open the table in the bottom half of the screen with more rows visible at once

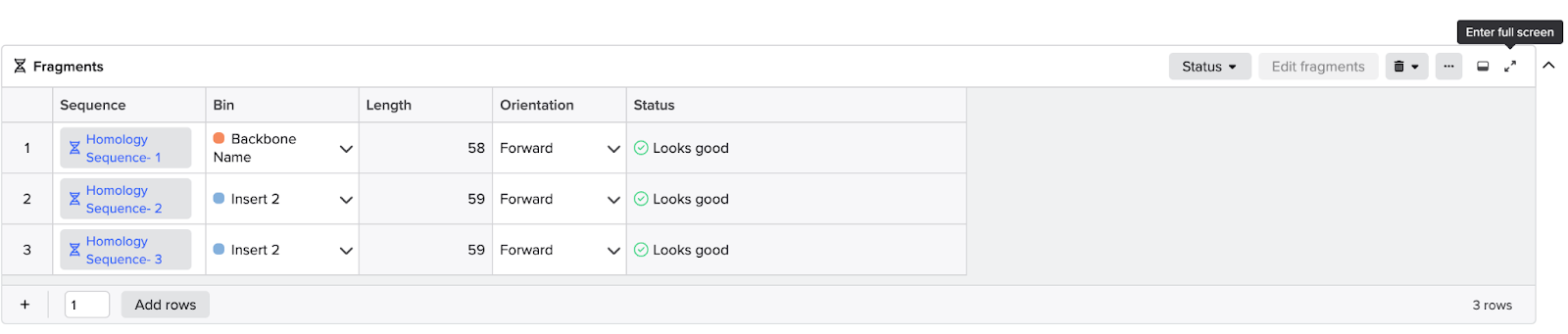

Enter full screen

In the top right of the table, “full screen” will open the table in the workspace.

Filter and sort rows in a Fragment/ Construct table

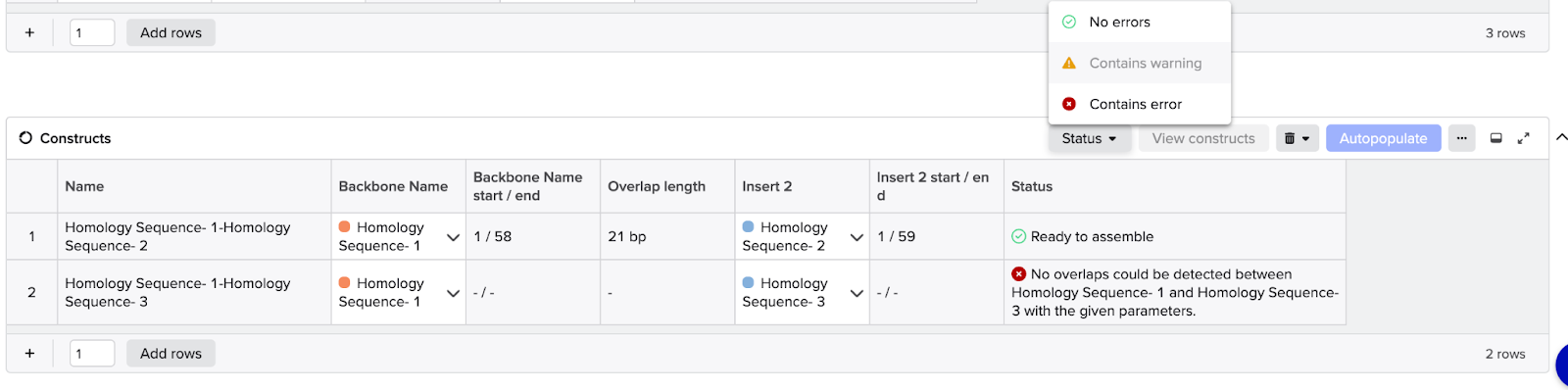

Filter table rows by status:

1. Click on the Status dropdown on the right side of the table tool bar
2. Select the status you would like to filter for

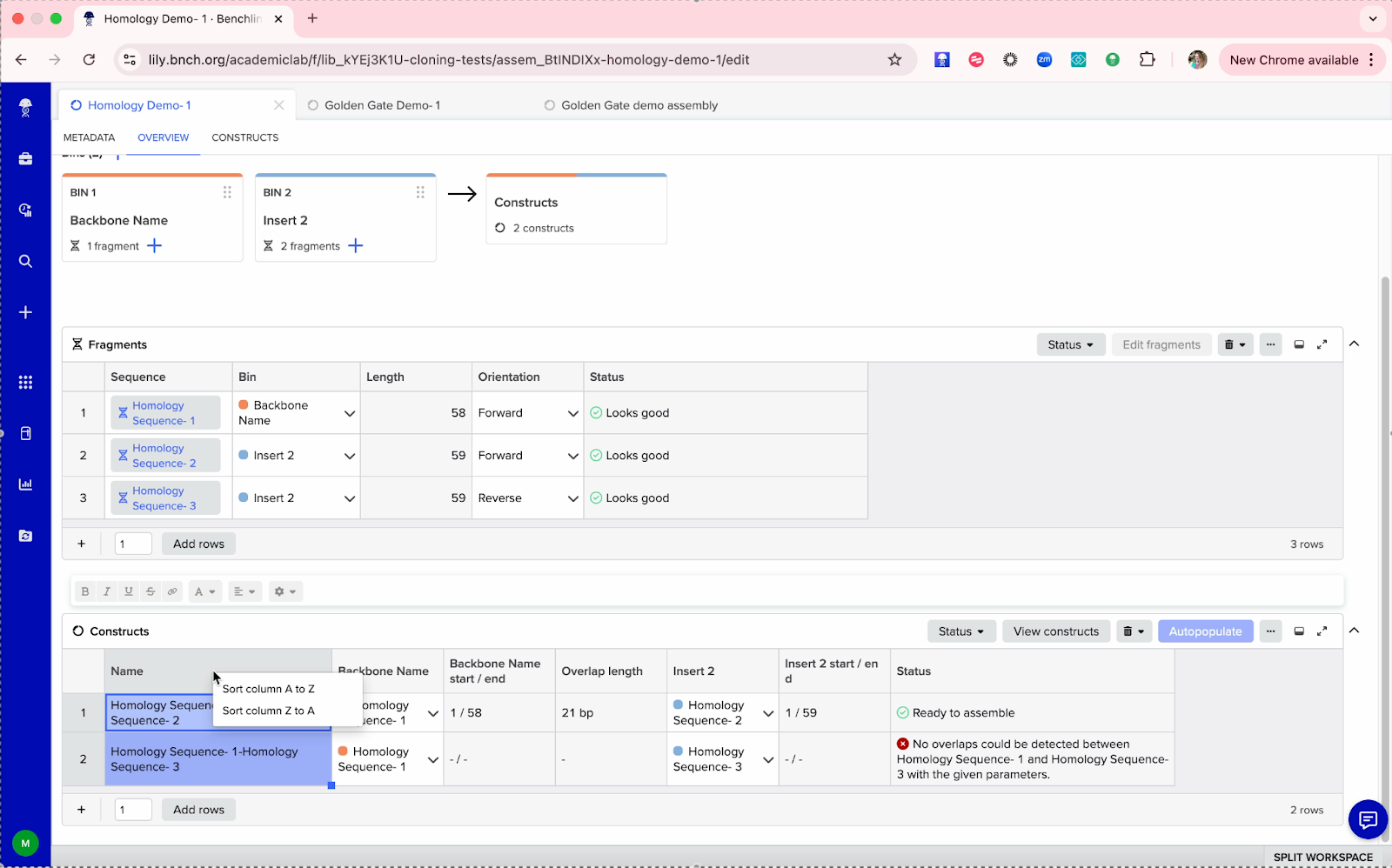

Sort Table Columns

Similar to tables within entries, you can sort fragment/ construct table columns, making it easier to navigate the table rows. To sort a column, right click on the header and select one of the following sorting methods:

• Text columns: “A to Z” or “Z to A”
• Numerical columns: “lowest to highest” or “highest to lowest”

Adding or deleting rows in a Fragment/ Construct Table

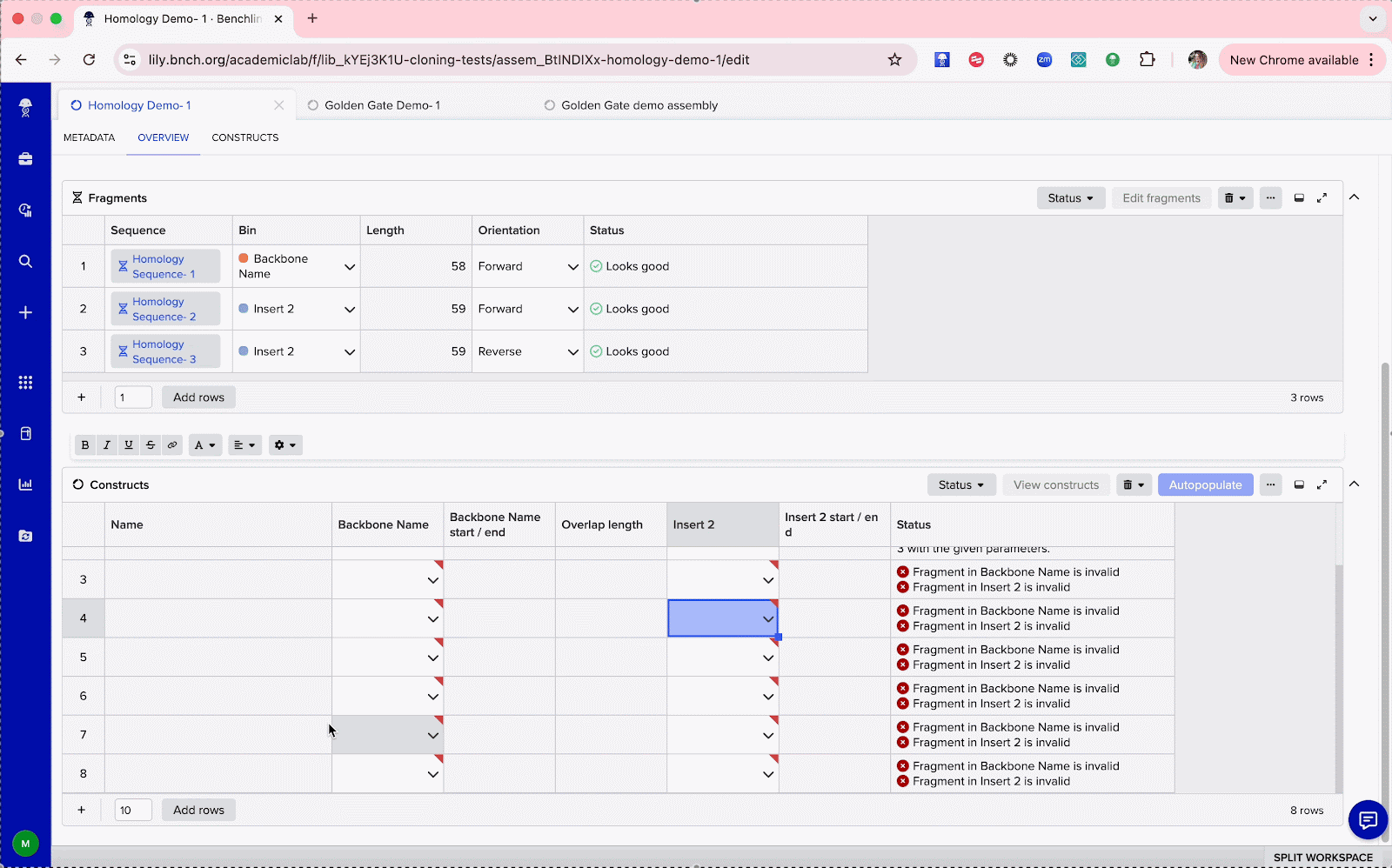

Add one row to fragment or construct table

Click the + in the bottom left corner of the table

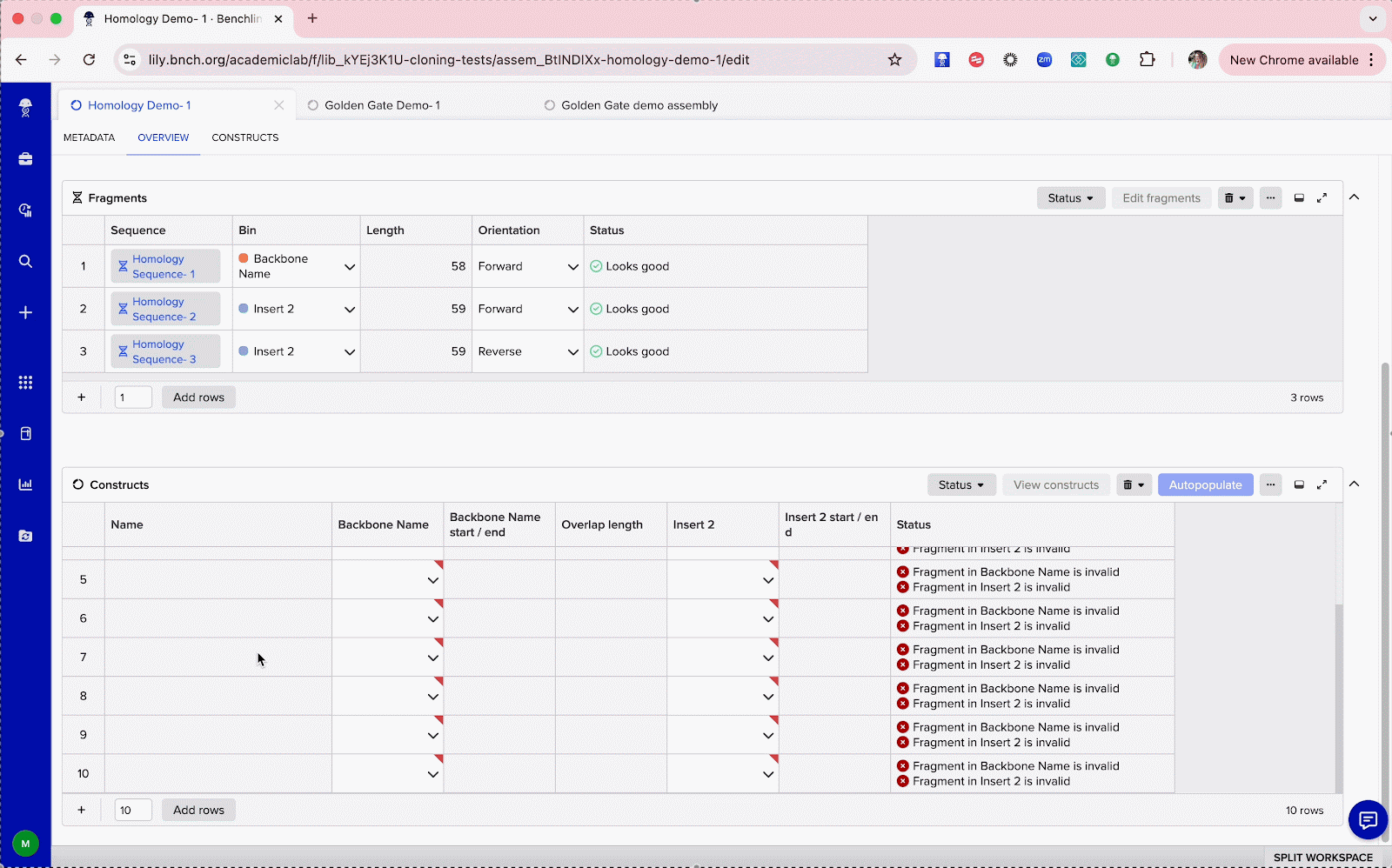

Add multiple rows to a fragment or construct table

1. In the bottom left corner of the table, enter the number of rows you want to add
2. Click the Add rows button

Method 1

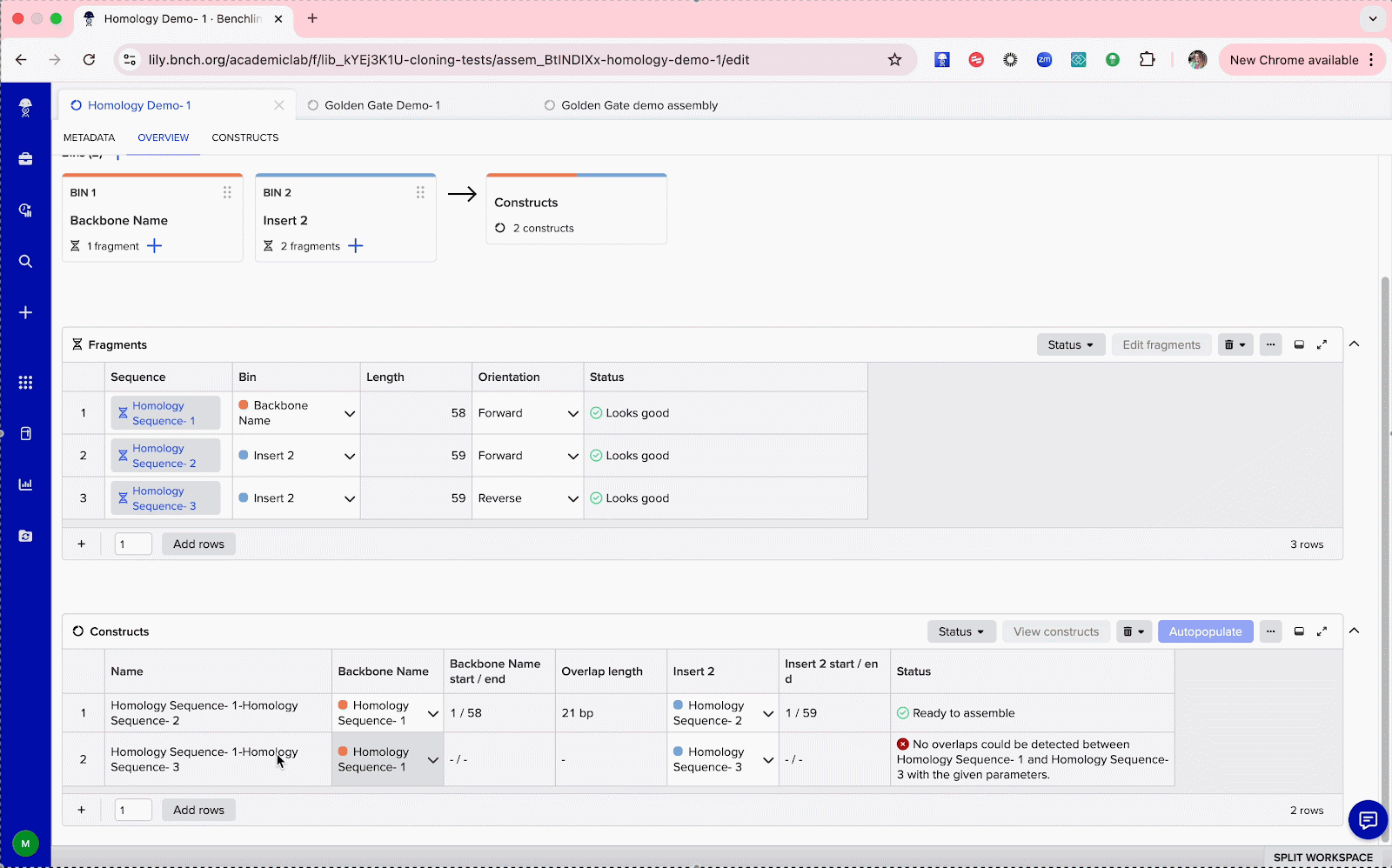

Delete one row from a fragment or construct table

1. Right click on the row you want to remove
2. Select Delete row from the dropdown

Delete multiple rows from a fragment or construct table

1. Select on the first row you want to delete
2. Hold down shift
3. Select the last row you want to delete. This will highlight all cells between the 2 rows you clicked
4. Release shift and right click on any highlighted row
5. Select Delete rows from the dropdown

Method 2

Delete one row from a fragment or construct table

1. Click on the row you want to remove
2. Click the trash can icon in the upper right corner of the table
3. Select Delete selected fragments/ constructs

Delete multiple rows from a fragment or construct table

1. Select on the first row you want to delete
2. Hold down shift
3. Select the last row you want to delete. This will highlight all cells between the 2 rows you clicked.
4. Click the trash can icon in the upper right corner of the table
5. Select Delete selected fragments/ constructs

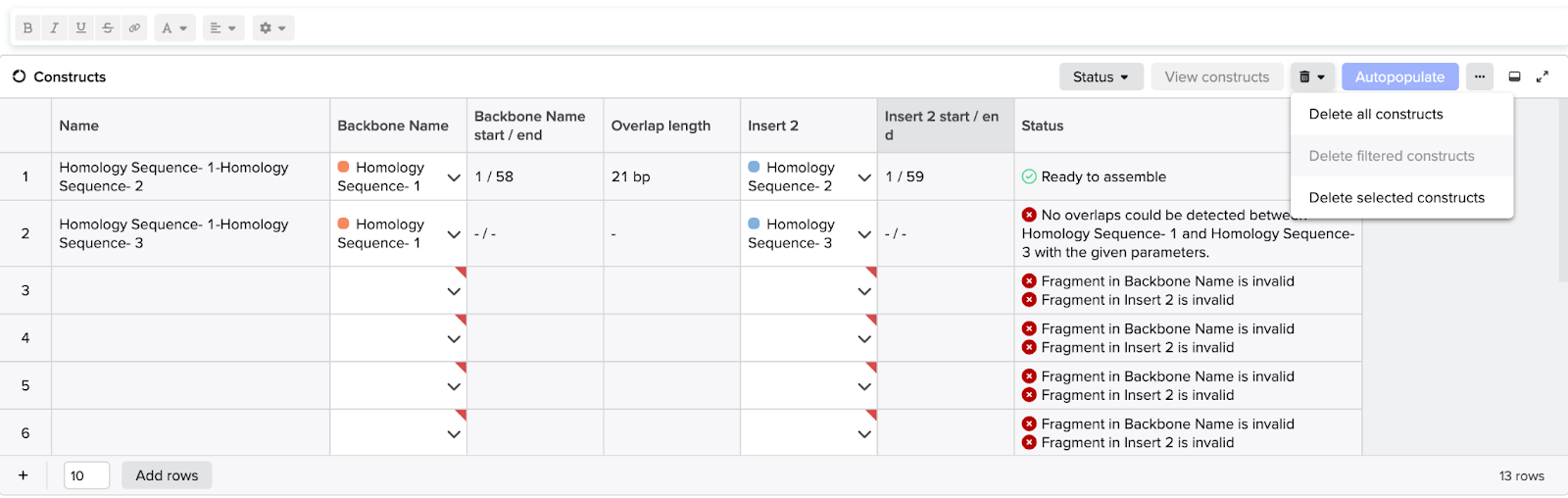

Delete all rows from a fragment or construct table

1. Click on the trash can icon in the upper right corner of the table
2. Select Delete all constructs/ fragments

Delete all rows with a certain status

1. Following the above instructions, filter for your desired status
2. Click the trash can icon in the right corner of the table
3. Select Delete filtered fragments
